AudioFuse 8Pre
Rack-format 8-channel mic/line preamp unit that works as a USB-C audio interface or as an ADAT expander for another interface. Suited to studios that need more analog inputs, mobile recording rigs and live-band tracking.
- 8 DiscretePRO mic preamps with independent mic/line circuits
- USB-C interface or ADAT expander, selected from the front panel
- Two units can be cascaded via ADAT for 16 preamps
- 8 line outputs, speaker outs and headphone out on 6.35 mm and 3.5 mm
- Inserts and instrument inputs on channels 1 and 2
- Includes AudioFuse Creative Suite; rack ears and feet removable
Fotografii
8Anunțuri
Încă nu sunt anunțuri pentru acest model
Când cineva vinde un AudioFuse 8Pre, anunțurile și istoricul vânzărilor vor apărea aici.
Vinde unul la felDescriere

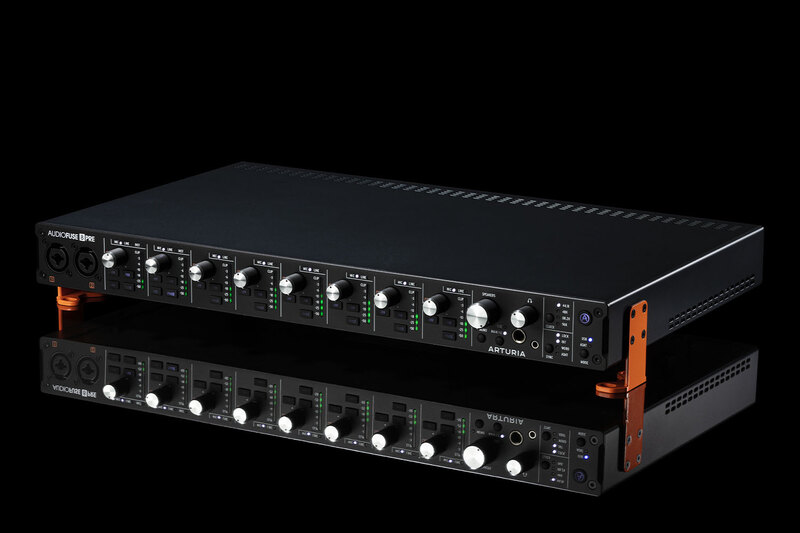

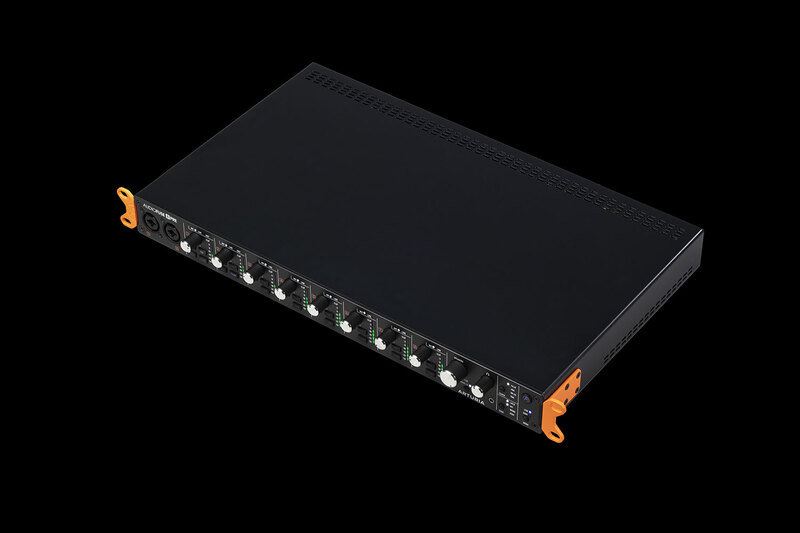

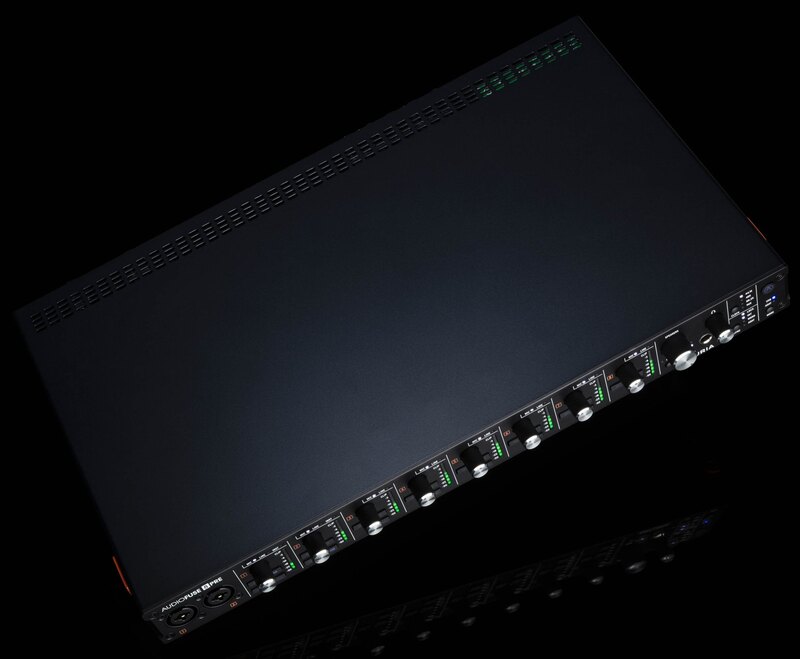

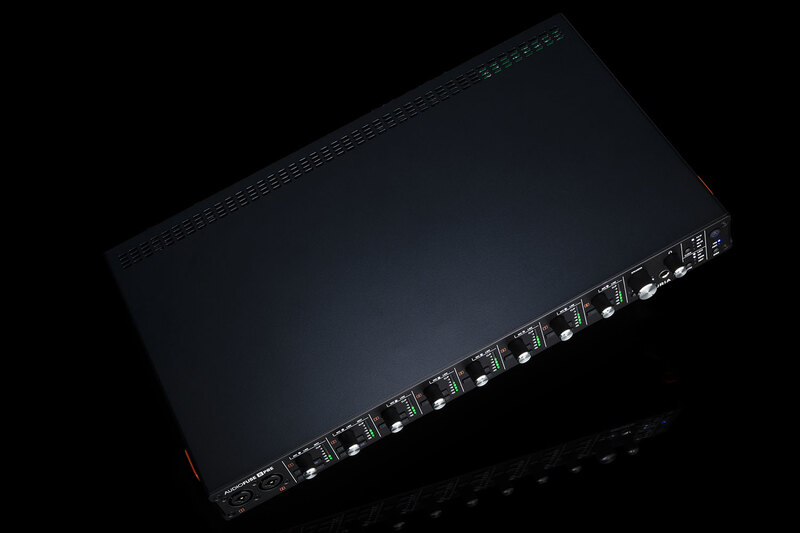

AudioFuse 8Pre combines eight DiscretePRO microphone preamps with 24-bit AD/DA conversion at up to 96 kHz. Channels 1 and 2 add instrument inputs, front and rear XLR/TRS combo connectors and balanced analog inserts for external line-level processors. A front-panel switch selects between USB interface mode and ADAT expander mode.

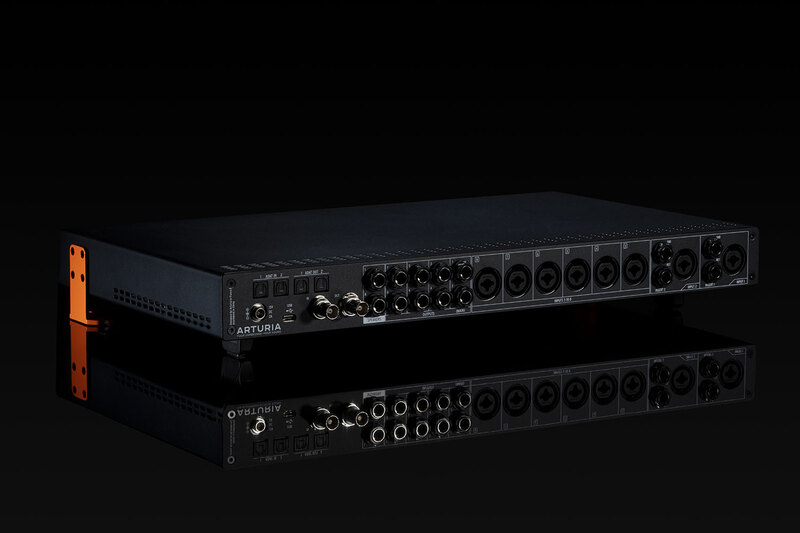

Outputs include eight individual analog line outputs, balanced TRS speaker outputs and a stereo headphone output on both 6.35 mm and 3.5 mm jacks, each with its own level control. A low-latency internal mixer handles direct monitoring. Clock source and sample rate are selected from the front panel, and a BNC word clock input and output/thru is provided.
It connects to a computer over USB-C (USB 2.0 compatible) and to other gear via double ADAT I/O. Two units can be cascaded over ADAT for 16 preamps. A Bluetooth receiver allows audio from a phone or tablet to be recorded or monitored. The AudioFuse Creative Suite plugin bundle is included, and the chassis is metal with removable rack ears and feet.
Video
Specificații
- Marcă
- Arturia
- Model
- AudioFuse 8Pre
- Categorie
- Studio › Plăci de sunet
Inputs
- Total input channels
- 16
- Mic preamps
- 8 (DiscretePRO)
- Instrument inputs
- 2 (channels 1 & 2)
- Analog inserts
- 2 balanced (channels 1 & 2)
- Front panel access
- Channels 1 & 2 (XLR/TRS combo, front and rear)
- Equivalent Input Noise (EIN)
- -129 dBu
Outputs
- Total output channels
- 20
- Line outputs
- 8 independent analog
- Speaker outputs
- Analog, balanced TRS jack
- Headphone output
- 1 stereo, 6.35 mm and 3.5 mm TRS, for headphones up to 600 Ohms
- Monitoring
- Individual level control for speakers and phones
Audio
- Converters
- 24-bit AD/DA
- Sample rate
- Up to 96 kHz
- Dynamic range
- 119 dBu
- Direct monitoring
- Ultra-low latency internal mixer
Connectivity
- USB
- USB-C, compatible with PC and Mac, fully USB 2.0 compatible
- ADAT
- 8 digital inputs/outputs up to 96 kHz (double ADAT I/O)
- Word clock
- Input and output/thru on BNC, switchable HiZ termination
- Bluetooth
- Receiver
Physical
- Dimensions
- 440 x 260 x 45 mm (17.3 x 10.2 x 1.8 in)
- Chassis
- Robust metal desktop chassis
- Mounting
- Removable rack ears and feet
Software
- Bundle
- AudioFuse Creative Suite
- Control software
- AudioFuse Control Center
- Windows requirements
- Win 7+, Intel i5 or faster, 4 GB RAM, 1 GB free disk space, OpenGL 2.0 GPU
- macOS requirements
- 10.10+, Intel i5 or faster, 4 GB RAM, 1 GB free disk space, OpenGL 2.0 GPU
In the box
- Contents
- AudioFuse 8Pre unit, power supply, 2x USB cable, DiscretePro Achievement Certificate
