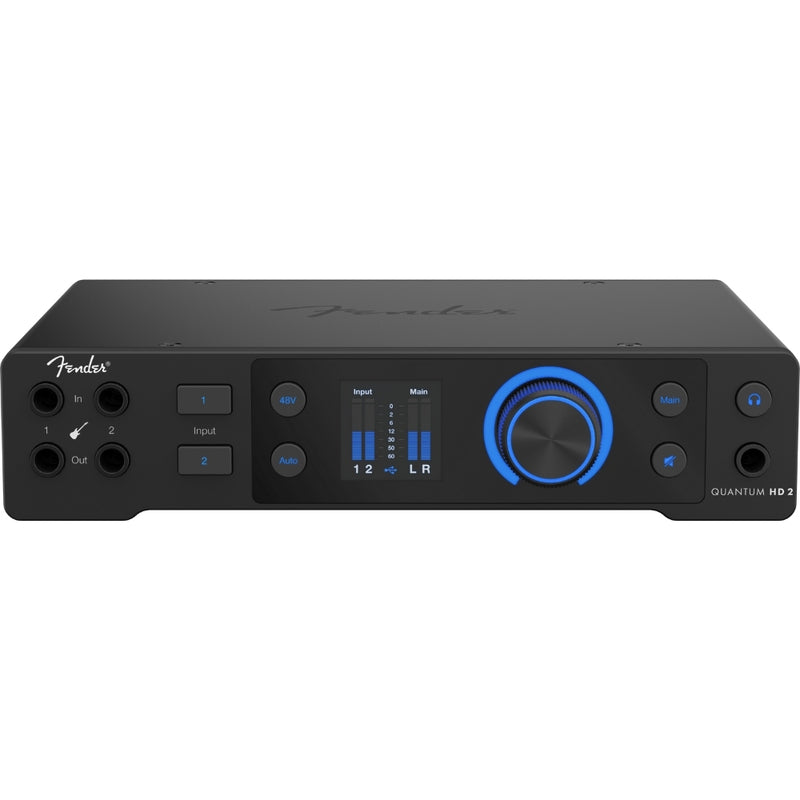

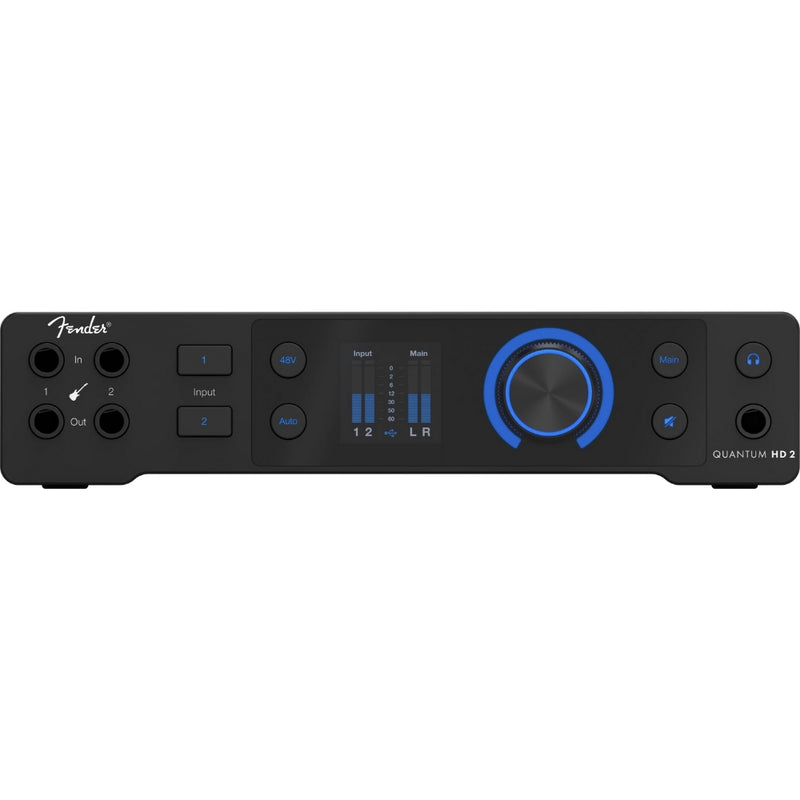

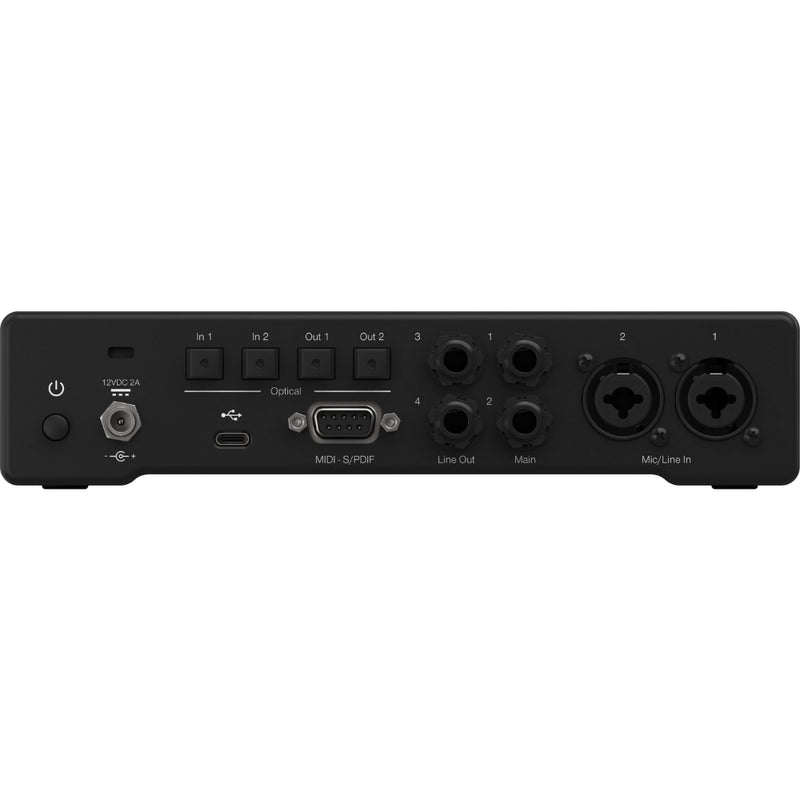

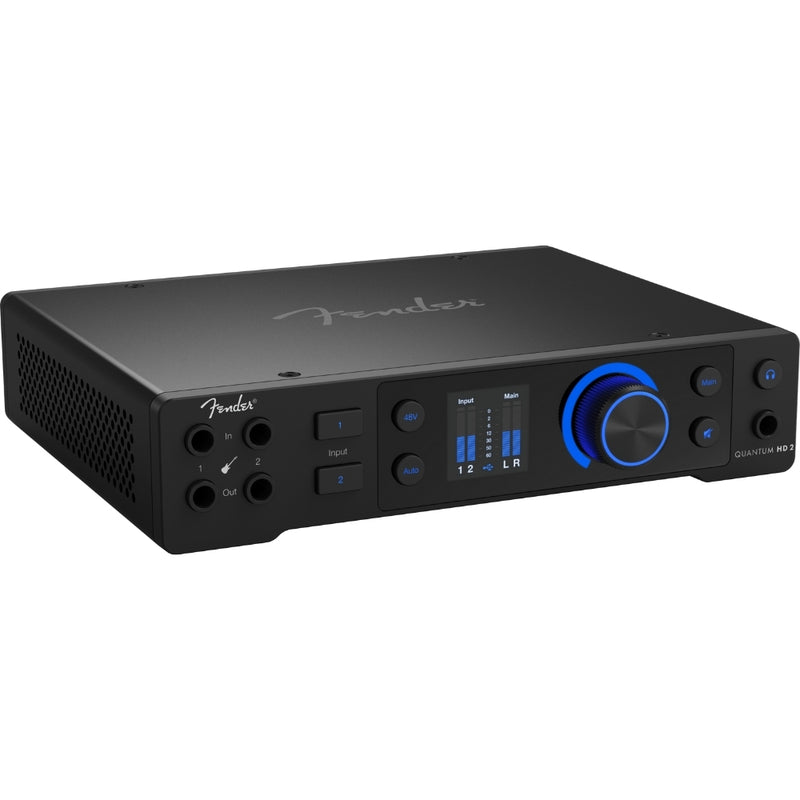

Fender Quantum HD2

Fender Quantum HD 2 – High-Resolution USB-C Audio Interface for Modern Studios

The Fender Quantum HD 2 is a powerful 20 × 24 USB-C audio interface engineered for musicians, producers, and project studios that demand precision, flexibility, and pristine sound quality. Featuring next-generation MAX-HD microphone preamps, 32-bit / 192 kHz converters, and ultra-low-latency drivers, the HD 2 captures every detail of vocals, instruments, and full-band sessions with exceptional clarity and headroom.

Key Features

• 20 × 24 USB-C audio interface: High-performance signal routing for complex recording setups
• MAX-HD mic preamps (+75 dB gain): Ultra-low noise, high headroom capture for any microphone
• 32-bit / 192 kHz converters: Exceptional dynamic range and resolution
• Expanded digital I/O: 16 channels of ADAT plus S/PDIF for system growth
• Fender instrument inputs: Front-facing Hi-Z inputs optimised for guitar and bass
• Auto Gain & re-amp outputs: Fast setup and creative tone shaping without re-recording
• DSP monitor mixer & loopback: Ideal for streaming, podcasting, and zero-latency monitoring
• Remote control integration: Manage gain, phantom power, and routing via Fender Studio Pro or Universal Control

Customer Benefits

The Quantum HD 2 simplifies complex studio workflows while delivering uncompromising audio quality. Auto Gain speeds up session setup, re-amp outputs unlock creative flexibility, and DSP monitoring keeps latency near zero. With extensive digital expansion and remote control capability, it adapts effortlessly to growing studios and hybrid music-production environments.

Quick Specs

• Interface type: USB-C audio interface
• I/O configuration: 20 inputs / 24 outputs
• Mic preamps: MAX-HD, up to 75 dB gain
• Bit depth / sample rate: 32-bit / up to 192 kHz
• Digital expansion: ADAT (16 ch), S/PDIF
• Instrument inputs: Fender-designed Hi-Z
• MIDI: 5-pin DIN In / Out
• Dimensions: 21.6 × 19.1 × 4.8 cm (W × D × H)
• Weight: 1.3 kg

What’s in the Box

• Fender Quantum HD 2 USB-C Audio Interface
• USB-C cable
• Quick start guide

Use Cases / Ideal For

Ideal for project studios, band recording, electronic music production, re-amping workflows, streaming, podcasting, and hybrid analog/digital setups requiring ADAT expansion and professional monitoring.

Compatibility

Compatible with macOS and Windows systems via USB-C. Works seamlessly with Fender Studio Pro, Universal Control, and all major DAWs. Supports microphones, instruments, outboard gear, digital expanders, and MIDI hardware.

Pros & Cons

✅ Pros:

• Extremely clean MAX-HD preamps with high gain
• 32-bit recording with excellent dynamic range
• ADAT expansion and re-amp outputs
• DSP monitoring and advanced workflow features

⚠️ Cons:

• No onboard effects processing
• May exceed the needs of simple home-recording setups

The Fender Quantum HD 2 is a forward-thinking, studio-ready interface that combines precision audio capture, intelligent workflow tools, and scalable connectivity.
