Descriere

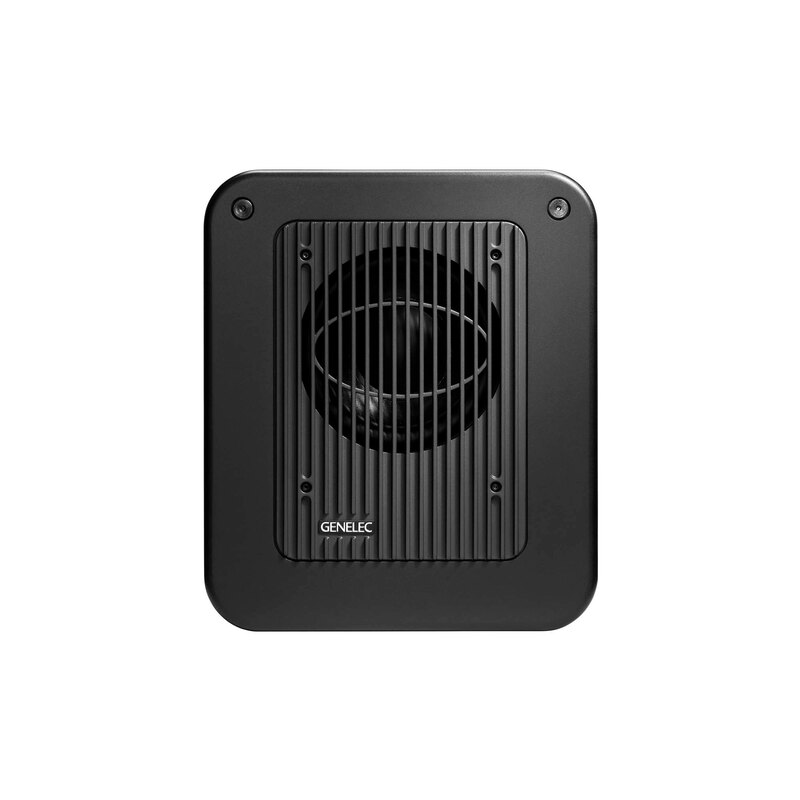

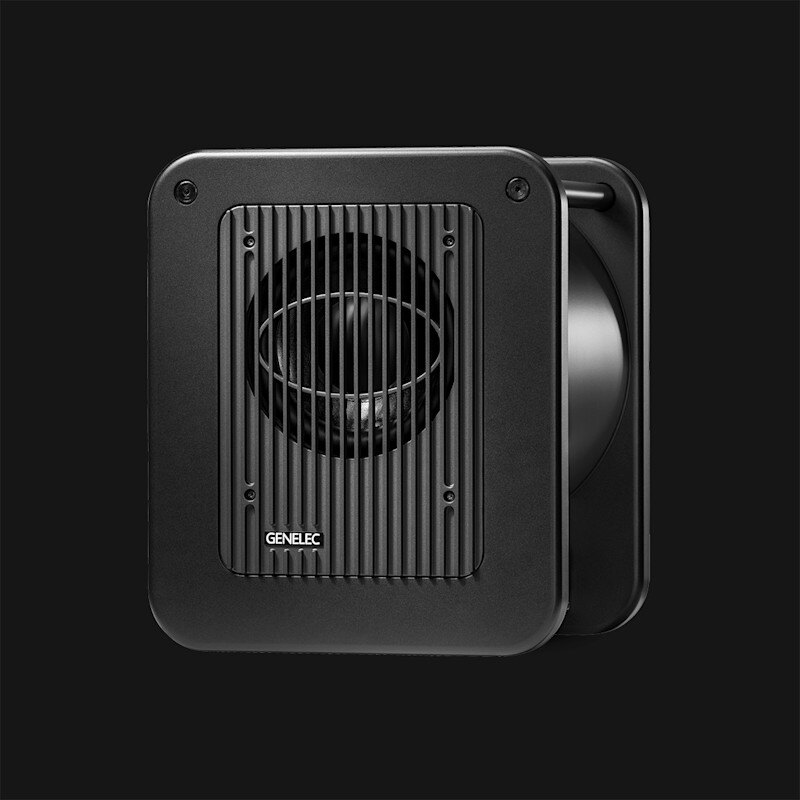

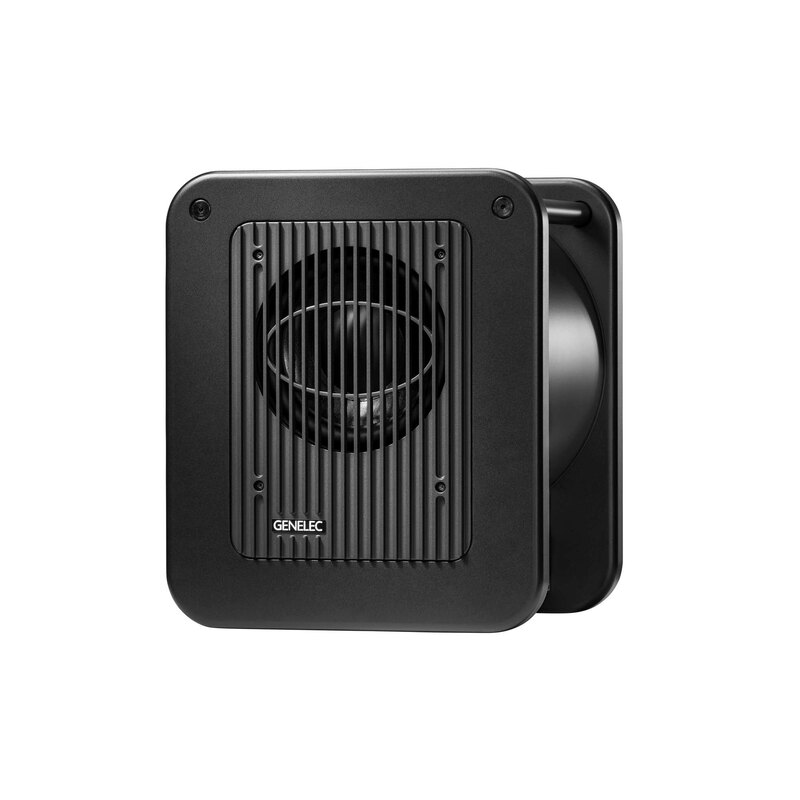

The 7050C is an active studio subwoofer built around a 205 mm magnetically shielded bass driver in an MDF reflex enclosure with a laminar spiral port. A 130 W Class D amplifier drives it, giving a response from 24 Hz to 85 Hz (-6 dB) and a short-term maximum SPL of at least 103 dB.
Onboard bass management uses an 85 Hz filter on five input and output channels, plus a separate LFE input. Rear panel DIP switches set subwoofer phase and LF roll-off, enable the +10 dB LFE level, and switch on and adjust the sensitivity of the ISS power-saving mode. Protection circuitry reduces output level when the driver nears its limits.

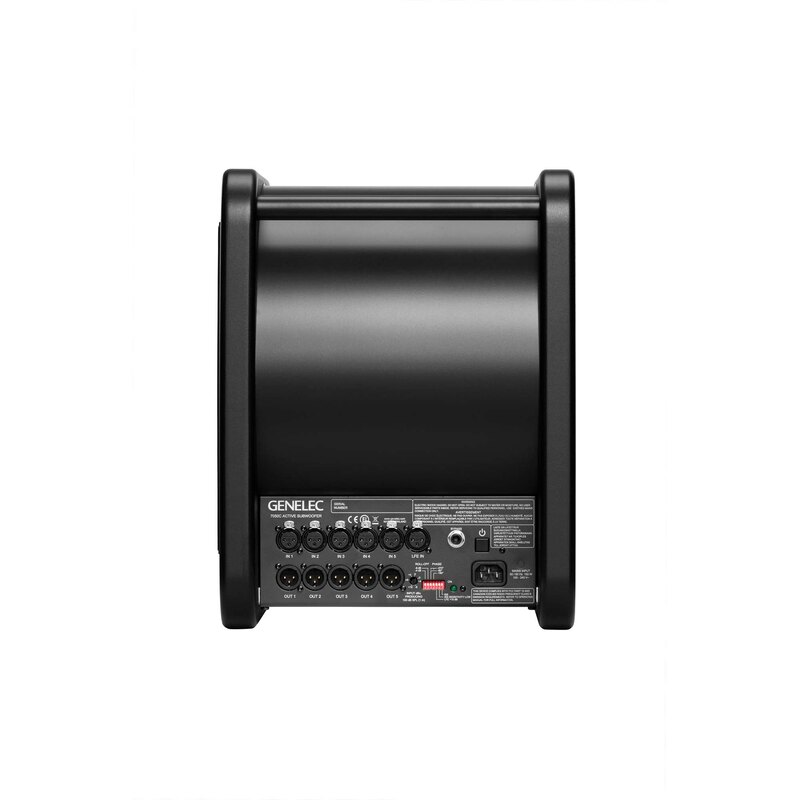

Connections are balanced XLR: five female inputs at 10 kOhm, a dedicated LFE input and five male outputs that feed the main monitors. A universal switched-mode supply accepts 100-240 V AC, 50/60 Hz.
Specificații
- Marcă
- Genelec
- Model
- 7050C
- Categorie
- Studio › Monitoare de studio
Audio
- Low cutoff (-6 dB)
- 24 Hz
- High cutoff (-6 dB)
- 85 Hz
- Short term max SPL
- ≥103 dB
- Self-generated noise
- ≤5 dB SPL
- Harmonic distortion (90 dB SPL at 1 m, 30-85 Hz)
- ≤4 %
- Amplifier power
- 130 W Class D (bass)
Drivers and enclosure
- Driver type
- Cone, magnetically shielded
- Driver diameter
- 205 mm
- Enclosure material
- MDF
- Enclosure type
- Reflex port
Inputs
- Analogue inputs
- 5 x XLR female, 10 kOhm balanced
- LFE input
- 1 x LFE IN connector
Outputs
- Analogue outputs
- 5 x XLR male
Power
- Mains voltage
- 100-240 VAC 50/60 Hz
- Power consumption, ISS active
- ≤0.5 W
- Power consumption, idle
- ≤11 W
- Power consumption, full output
- 150 W
Physical
- Height
- 410 mm
- Width
- 350 mm
- Depth
- 319 mm
- Weight
- 17.3 kg (38.1 lb)
In the box
- Subwoofer
- 1 x 7050C
- Mains cable
- 1 x 1.8 m
- Documentation
- 1 x operating manual
