2M Bronze Verso
A moving-magnet phono cartridge from Ortofon's 2M series, built for bottom-mount headshells. It uses a Nude Fine Line diamond stylus and suits turntable owners who want a step up in detail and balance.
- Moving-magnet cartridge for bottom-mount headshells
- Nude Fine Line diamond stylus, r/R 8/40 µm
- Split pole pins with silver-plated OFC coil wire
- 5 mV output at 1 kHz, 5 cm/sec
- Recommended tracking force 1.5 g
- Load: 47 kOhm, 150-300 pF
Fotografii
5Anunțuri
Încă nu sunt anunțuri pentru acest model
Când cineva vinde un 2M Bronze Verso, anunțurile și istoricul vânzărilor vor apărea aici.
Vinde unul la felDescriere

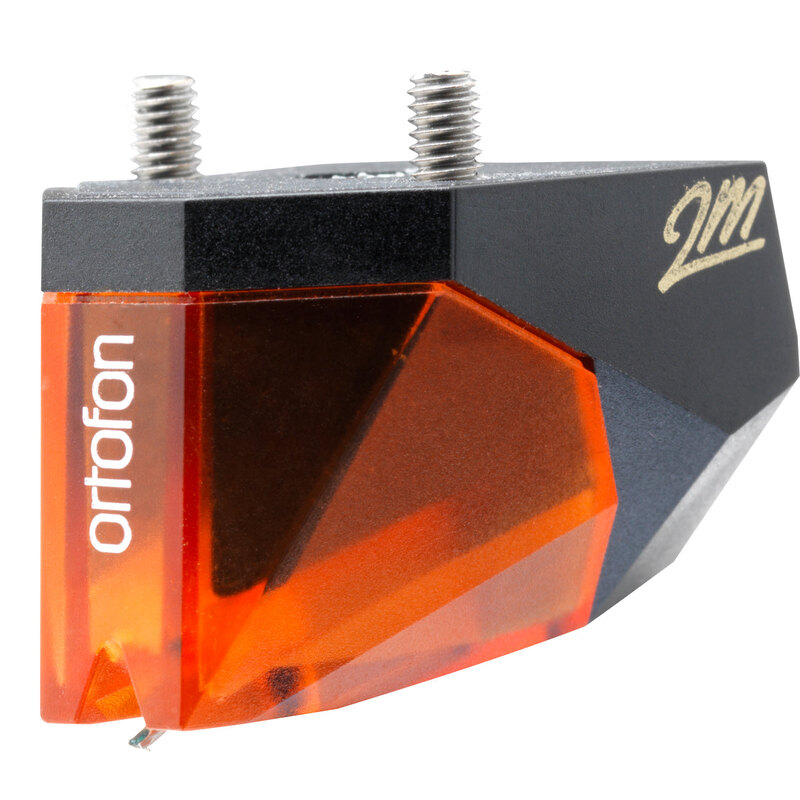

The 2M Bronze Verso is the bottom-mount version of the 2M Bronze moving-magnet cartridge. It is meant for turntables whose headshell takes the cartridge from underneath, and it uses a half inch bottom mount.
The stylus is a Nude Fine Line diamond with an r/R 8/40 µm tip and an aluminium cantilever. The generator uses quad coils with split pole pins, an Ortofon design, wound with silver-plated OFC wire. The body is polymer and aluminum in black and bronze, and the cartridge weighs 7.2 g. The recommended tracking force is 1.5 g, within a 1.4-1.7 g range.
For electrical matching, the cartridge is specified for a 47 kOhm load resistance and 150-300 pF load capacitance. Output is 5 mV at 1 kHz. The Verso is one of four 2M variants, alongside the standard 2M, the Premounted and the 2MR. A replacement guide covers swapping the M2.0 mm screws, and a user guide and dimensions chart are available for download.
Video
Specificații
- Marcă
- Ortofon
- Model
- 2M Bronze Verso
- Categorie
- Echipamente DJ › Doze și ace
Electrical
- Output voltage at 1 kHz, 5cm/sec
- 5 mV
- Channel balance at 1 kHz
- 1 dB
- Channel separation at 1 kHz
- 26 dB
- Frequency response 20 Hz - 20 kHz
- 2 / - 0 dB
- Internal impedance, DC resistance
- 1.2 kOhm
- Internal inductance
- 630 mH
- Recommended load resistance
- 47 kOhm
- Recommended load capacitance
- 150-300 pF
Stylus and Tracking
- Stylus type
- Nude Fine Line
- Stylus tip radius
- r/R 8/40 µm
- Cantilever material
- Aluminium
- Tracking ability at 315 Hz
- 80 µm
- Compliance, dynamic, lateral
- 22 µm/mN
- Tracking force range
- 1.4-1.7 g (14-17 mN)
- Tracking force, recommended
- 1.5 g (15 mN)
- Tracking angle
- 20°
Construction
- Coil system
- Quad-coils with split pole pins and silver-plated OFC Coil Wire
- Coil wire material
- Silver-plated OFC Coil Wire
- Cartridge body material
- Polymer and aluminum
- Cartridge colour
- Black/Bronze
Physical
- Mounting type
- Half inch bottom mount
- Cartridge weight
- 7.2 g
- Premounted cartridge weight
- 16.7 g
