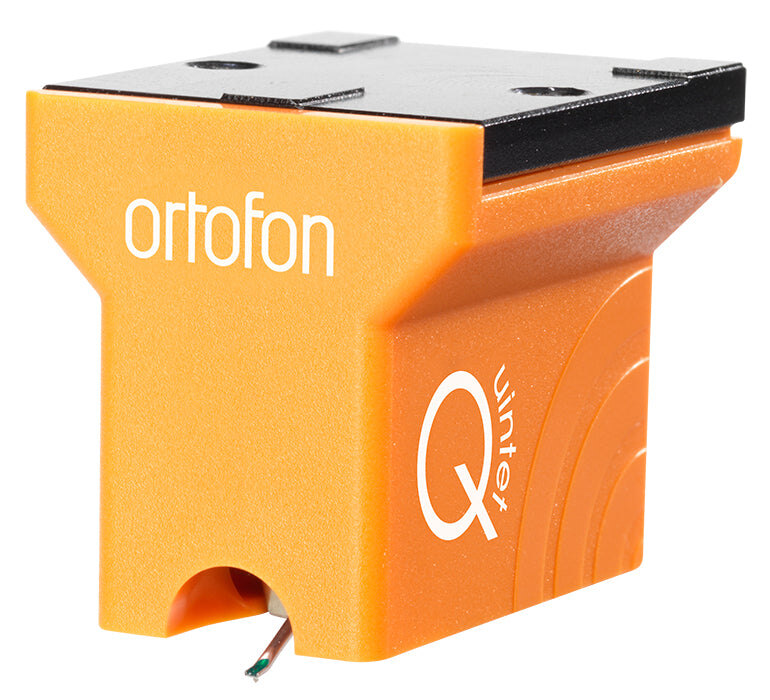

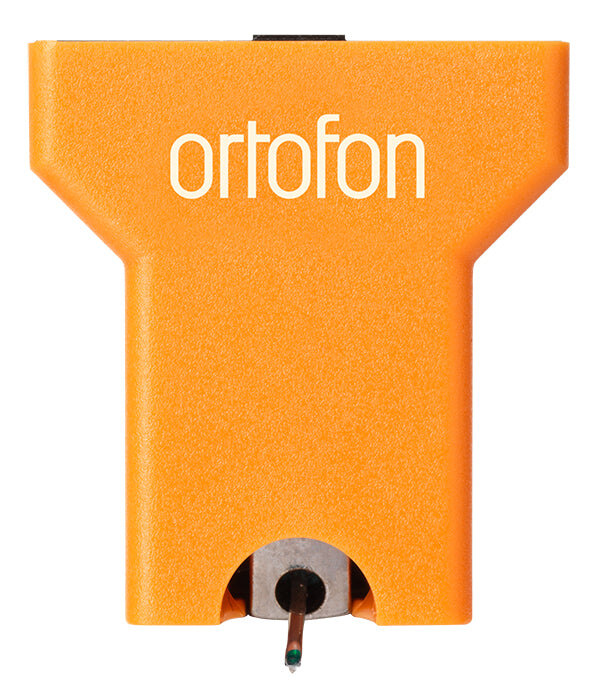

MC Quintet Bronze
Moving-coil phono cartridge from Ortofon's Quintet series, fitted with a Nude Fine Line diamond stylus and pure copper coils. It is aimed at vinyl listeners who want an even-handed, detailed sound from classical and other music on a standard half-inch mount.
- Moving-coil cartridge with Nude Fine Line diamond stylus
- Pure 4-nines copper coil wire, neodymium magnets
- Output 0.3 mV at 1 kHz, 5 Ohm internal impedance
- Tracking force 2.1-2.5 g, 2.3 g recommended
- Half-inch mount, 5 mm or 7 mm screws, 9 g weight
- Bronze-coloured body in injection-moulded plastic
Fotografii
5Anunțuri
Încă nu sunt anunțuri pentru acest model
Când cineva vinde un MC Quintet Bronze, anunțurile și istoricul vânzărilor vor apărea aici.
Vinde unul la felDescriere
The MC Quintet Bronze is a moving-coil cartridge that sits in the upper part of the Quintet range. Its Nude Fine Line stylus has a slim profile intended to follow high-frequency detail in the groove, while the larger contact area is meant to lower distortion and record wear. The tonal balance is described as even across the spectrum.
The body is made of injection-moulded ABS thermoplastic with a scratch-resistant surface, and neodymium magnets are used to raise output. The coils are wound from pure 4-nines copper. Internal impedance is 5 Ohm, so the cartridge is not very sensitive to load and can work with a wide range of preamps and step-up transformers. Output is 0.3 mV at 1 kHz.
Mounting is a standard half-inch fitting. The aluminium frame has threaded holes that take 5 mm or 7 mm screws, depending on headshell thickness. Straight lines, a visible stylus and generous clearance below the body make alignment simpler. The recommended tracking force is 2.3 g.
Video
Specificații
- Marcă
- Ortofon
- Model
- MC Quintet Bronze
- Categorie
- Echipamente DJ › Doze și ace
Audio
- Output voltage at 1 kHz, 5cm/sec
- 0.3 mV
- Channel balance at 1 kHz
- < 1.2 dB
- Channel separation at 1 kHz
- > 23 dB
- Frequency response 20 Hz - 20 kHz
- +/- 1.5 dB
- Tracking ability at 315 Hz
- 80 μm
- Compliance, dynamic, lateral
- 15 µm/mN
Stylus
- Stylus type
- Nude Fine Line
- Stylus tip radius
- r/R 8/40 µm
- Tracking angle
- 20°
Tracking
- Tracking force range
- 2.1-2.5 g
- Tracking force, recommended
- 2.3 g
Electrical
- Internal impedance, DC resistance
- 5 Ohm
- Recommended load impedance
- > 20 Ohm
- Coil wire material
- Pure 4-nines copper
Physical
- Cartridge body material
- PC
- Cartridge colour
- Bronze
- Cartridge weight
- 9 g
- Mounting type
- Half inch mount
