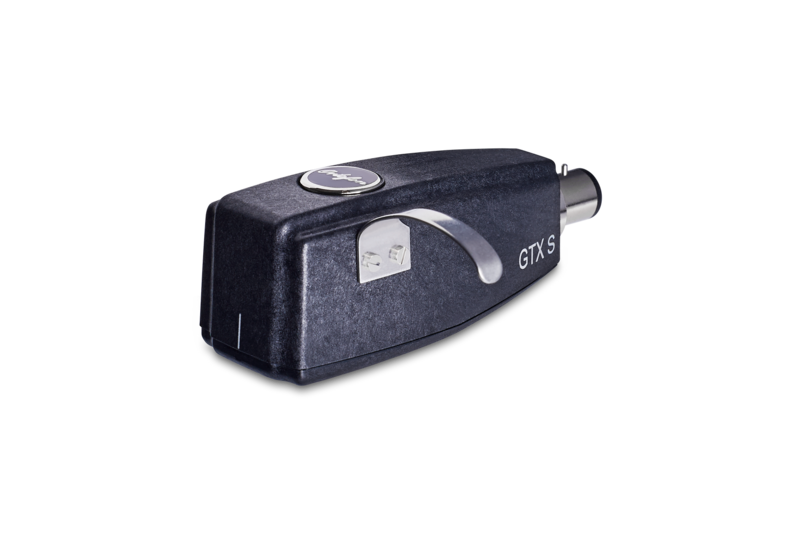

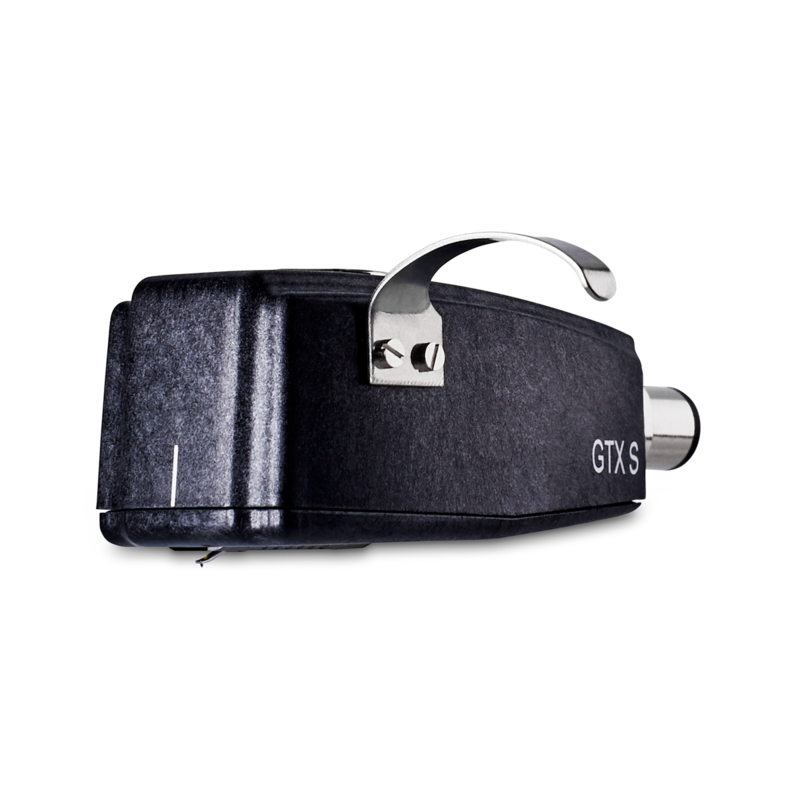

SPU GTX S
A moving coil phono cartridge from Ortofon's SPU series with a spherical diamond stylus and a built-in step-up transformer. It suits vinyl listeners who want the classic SPU sound and a direct connection to a standard phono input.
- Moving coil cartridge with spherical diamond stylus
- Built-in step-up transformer, made with Lundahl Transformers
- Connects to a standard phono input without extra equipment
- Unibody glass-fiber reinforced co-polymer housing
- Bayonet/SME mounting, 38 g
- Hand-built in Denmark
Fotografii
6Anunțuri
Încă nu sunt anunțuri pentru acest model
Când cineva vinde un SPU GTX S, anunțurile și istoricul vânzărilor vor apărea aici.
Vinde unul la felDescriere
The SPU GTX S is a moving coil cartridge in the SPU line. It has a spherical stylus, the most common tip shape, which rests in the groove walls with a rounded profile. The cartridge is voiced for a warm, tonally rich sound in the SPU tradition.

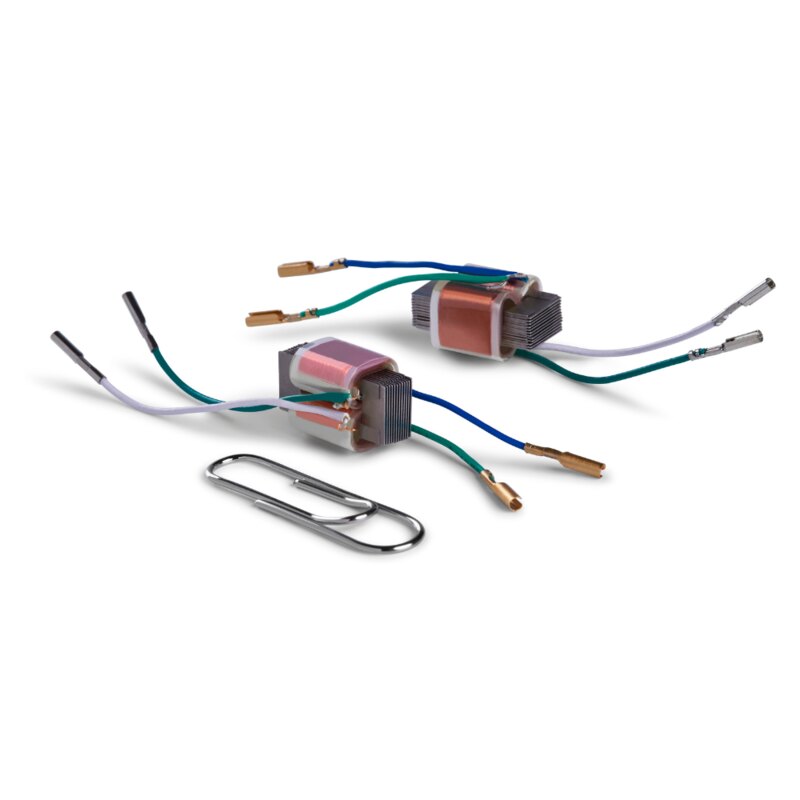

Its main practical feature is a step-up transformer built into the body, developed with Lundahl Transformers. Because of it, the cartridge can be connected to a phono stage or amplifier with a moving magnet input, so a separate step-up unit or MC stage is not needed.

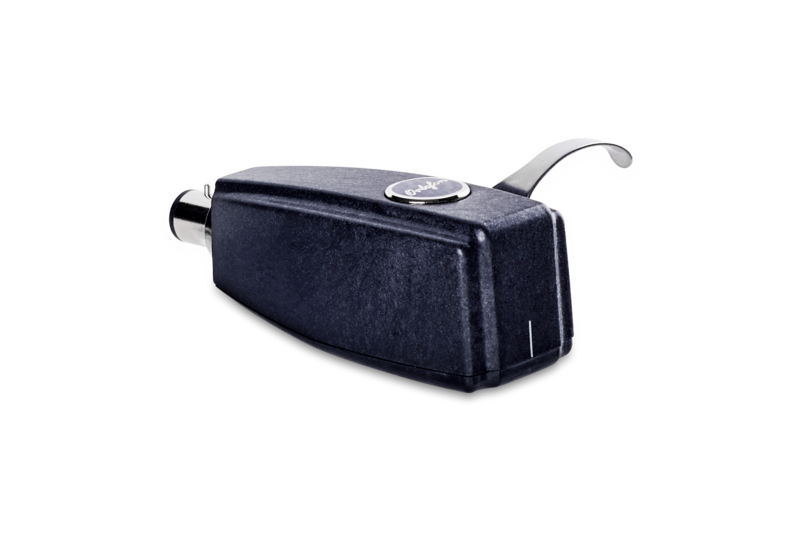

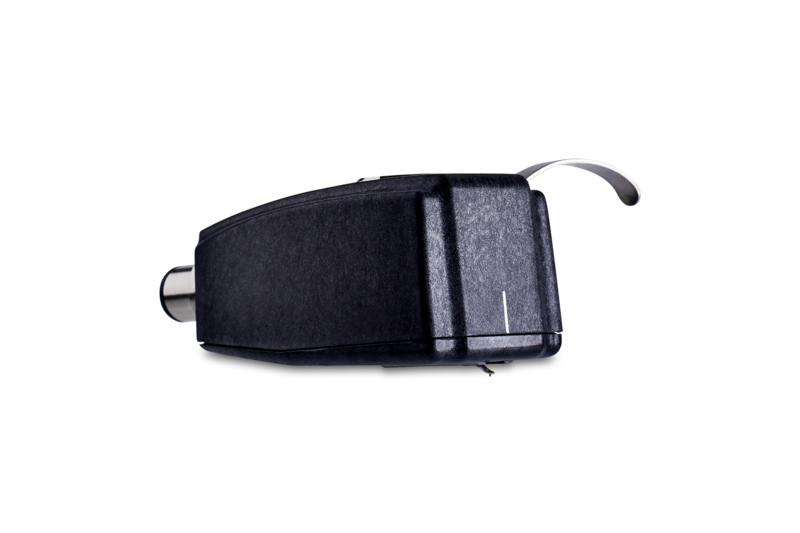

The unibody housing is moulded in one piece from a glass-fiber reinforced co-polymer, a material not used before on SPU cartridges, with a bottom cover in the same material. The cartridge is hand-built in Denmark and mounts with a bayonet/SME connection. The GTX E version shares this construction but uses an elliptical diamond.
Specificații
- Marcă
- Ortofon
- Model
- SPU GTX S
- Categorie
- Echipamente DJ › Doze și ace
Stylus and Cantilever
- Stylus type
- Spherical
- Stylus tip radius
- r/R 8/18 μm
- Cantilever material
- N/A
Electrical
- Output voltage at 1 kHz, 5cm/sec
- 4 mV
- Internal impedance, DC resistance
- 610 Ω
- Recommended load capacitance
- 150 – 600 pF
- Coil system
- OFC Coil wire
- Coil wire material
- OFC
Audio
- Frequency response 20 Hz - 20 kHz
- ±3 dB
- Channel separation at 1 kHz
- 20 dB
- Channel balance at 1 kHz
- 1.5 dB
Tracking
- Tracking ability at 315 Hz
- 60 μm
- Compliance, dynamic, lateral
- 10 μm/mN
- Tracking force, recommended
- 4 g
- Tracking angle
- 20°
Physical
- Cartridge body material
- Glass-fiber reinforced co-polymer
- Cartridge colour
- Black
- Cartridge weight
- 38 g
- Mounting types
- Bayonet/SME
