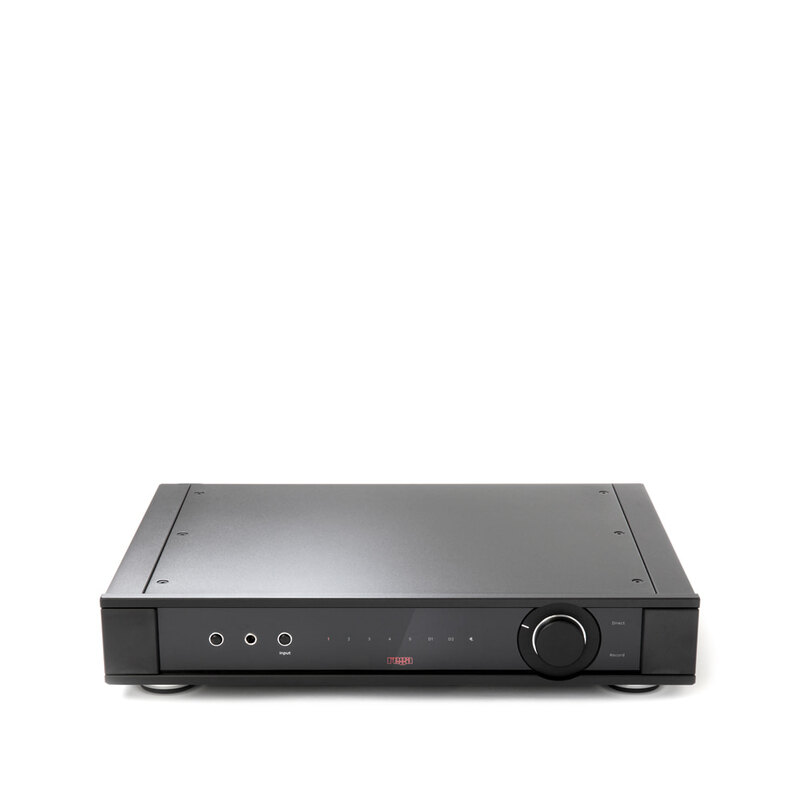

Elicit Mk5
A 105 W per channel Class A/B stereo integrated amplifier with a built-in DAC, MM phono stage and headphone output. It suits listeners who want one amplifier covering analogue, digital and turntable sources.
- 105 W per channel into 8 Ω, 127 W into 6 Ω, 162 W into 4 Ω
- Built-in DAC with optical and coaxial inputs, up to 192 kHz / 24 bit
- Moving magnet phono stage
- 4 line inputs, Direct input, record loop and pre-out
- Discrete FET preamp with Alps volume potentiometer
- Headphone output and thermal cut-out
Fotografii
8Anunțuri
Încă nu sunt anunțuri pentru acest model
Când cineva vinde un Elicit Mk5, anunțurile și istoricul vânzărilor vor apărea aici.
Vinde unul la felDescriere
The Elicit MK5 is a stereo integrated amplifier built around a Class A/B power stage rated at 105 W per channel into 8 Ω, rising to 127 W into 6 Ω and 162 W into 4 Ω. It is intended to drive demanding loudspeakers and sits in the current Rega case design.
The preamp uses a discrete FET circuit and an Alps volume potentiometer, both carried over from the Aethos. Other build details include discrete circuitry, high-quality relays, polypropylene capacitors and Sanken output transistors. The digital section has galvanically and optically isolated inputs, a Wolfson S/PDIF receiver and a Wolfson DAC with a Rega-designed discrete line driver. Sample rates up to 192 kHz and bit depths of 16 to 24 bit are supported.

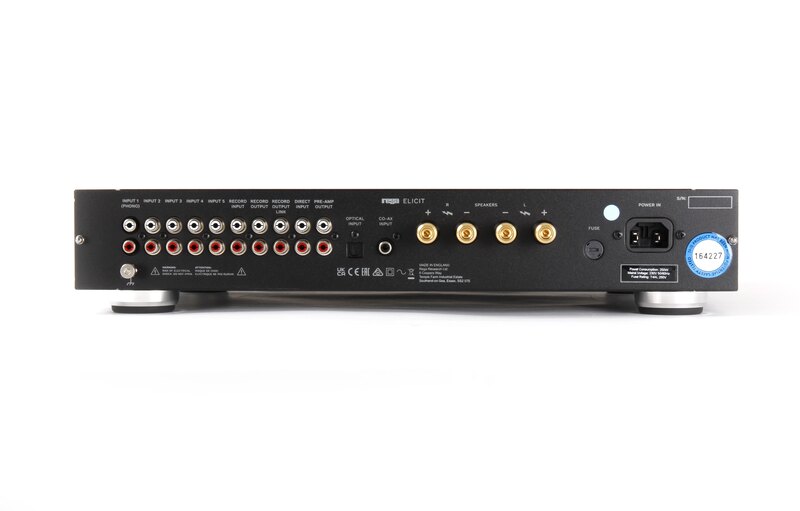

Connectivity covers four line inputs, an optical and a coaxial digital input, a moving magnet phono input, a Direct input, a record loop, a pre-out and a headphone output. Thermal cut-out protection is fitted.
Video
Specificații
- Marcă
- Rega
- Model
- Elicit Mk5
- Categorie
- Hi-Fi și audio pentru casă › Amplificatoare
Audio
- Power output into 8 Ω
- 105 W per channel
- Power output into 6 Ω
- 127 W per channel
- Power output into 4 Ω
- 162 W per channel
- Amplifier class
- Class A/B
- Preamp
- Discrete FET circuit with Alps volume potentiometer
- Output transistors
- Sanken
Inputs
- Line level inputs
- 4
- Phono input
- Moving magnet (MM)
- Digital inputs
- 2 (1 x optical, 1 x coaxial)
- Direct input
- Yes
- Record input
- Yes
Outputs
- Pre-out
- Yes
- Headphone output
- Yes
- Record loop
- Yes
Digital
- DAC
- Wolfson DAC with Rega discrete line driver
- S/PDIF receiver
- Wolfson
- Supported sampling rates
- 32, 44.1, 48, 88.2, 96, 176.4, 192 kHz
- Supported bit depths
- 16 to 24 bit
Power
- Power consumption
- 375 W
- Power consumption in off mode
- 0.0 W
- Protection
- Thermal cut-out
Physical
- Dimensions (W × H × D)
- 432 x 82 x 340 mm (D includes loudspeaker terminals)
- Weight
- 12.5 kg
Warranty
- Warranty
- Lifetime limited warranty against manufacturing defects
