Elicit-R
Integrated stereo amplifier rated at 105 W per channel into 8 ohms, with a built-in moving magnet phono stage and switchable line input. Suited to hi-fi systems built around vinyl, CD players or DACs.
- 105 W per channel into 8 ohms, 162 W into 4 ohms
- Built-in moving magnet phono stage
- Input 1 switches between phono and line level
- Discrete FET line preamp with stepped attenuator volume
- Solaris system remote handset included
- What Hi-Fi? 2014 Best stereo amp award
Fotografii
8Anunțuri
Încă nu sunt anunțuri pentru acest model
Când cineva vinde un Elicit-R, anunțurile și istoricul vânzărilor vor apărea aici.
Vinde unul la felDescriere

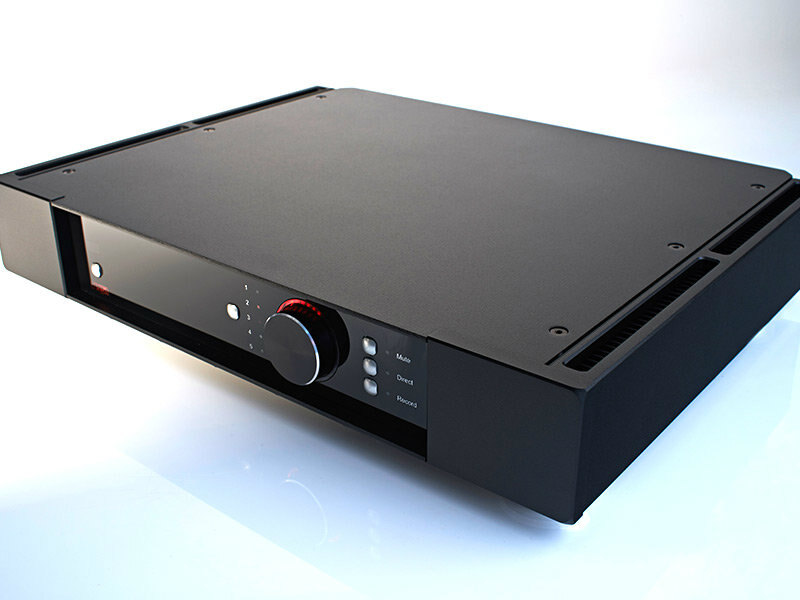

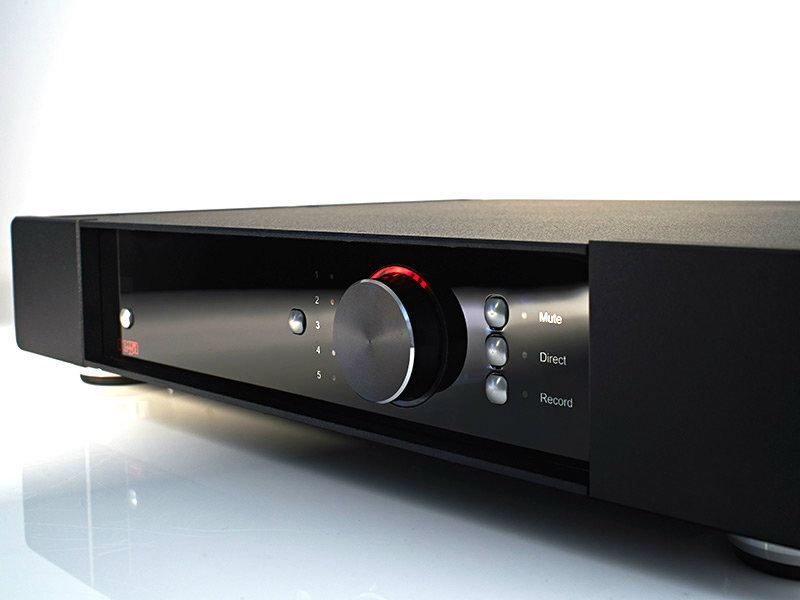

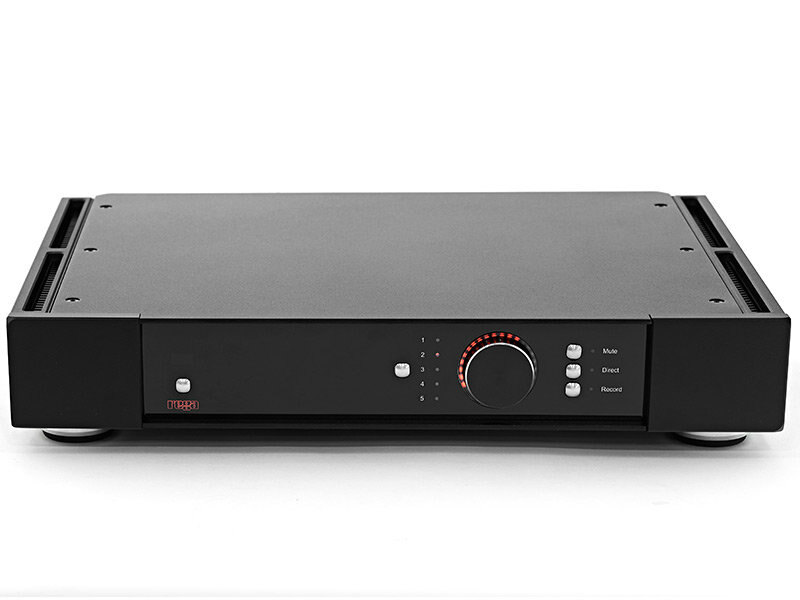

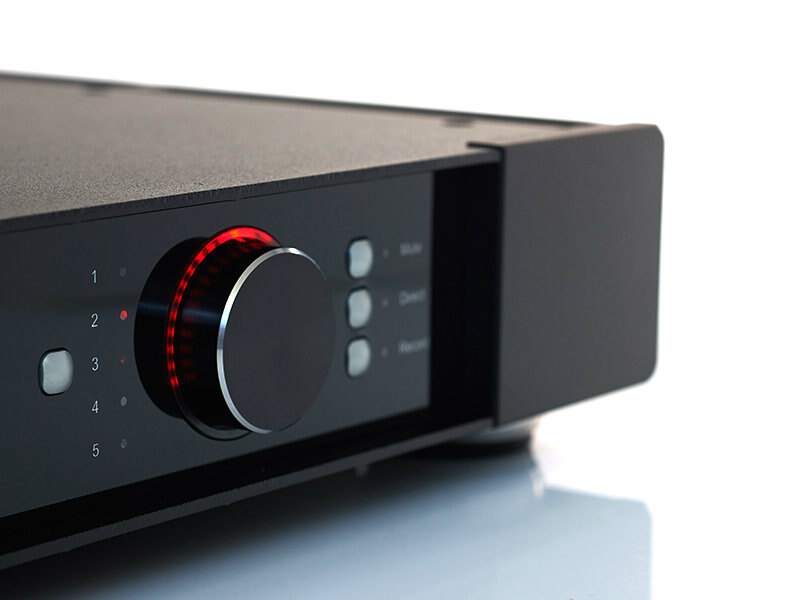

The Elicit-R is a stereo integrated amplifier built around power amplifier circuits derived from the Brio-R. Its output stage uses a low-source-impedance emulated Class A driver based on a complementary pair of Darlington output transistors. Line-level preamplification uses discrete FET circuits, and volume is set by a programmable stepped attenuator. Polypropylene capacitors are used throughout the signal path.
Input 1 combines a moving magnet phono stage with a line input, selected by a switch on the rear panel. In line mode the input is configured for extra isolation and lower noise, which suits an external MM or MC phono stage, a CD player or a DAC. Rated output is 105 W per channel into 8 ohms, rising to 162 W into 4 ohms.

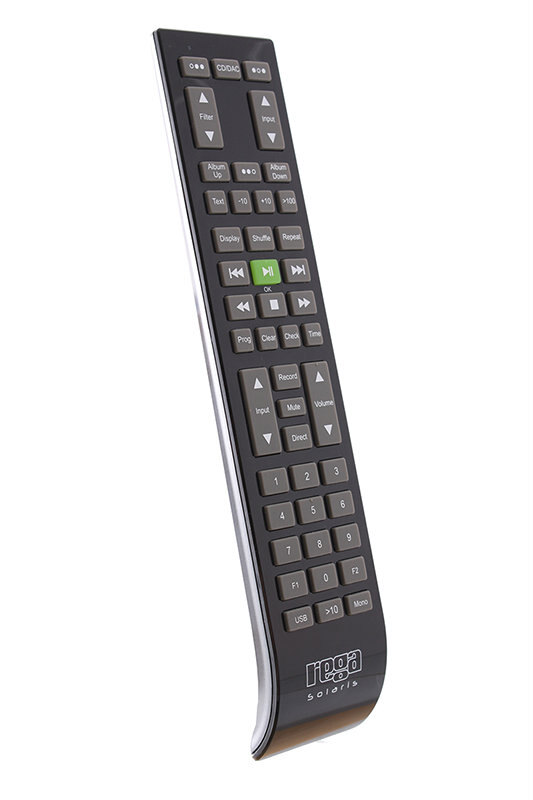

The amplifier ships with the Solaris system remote handset, which also controls the other products in the maker's R-series electronics. The design performs best when warm, so the unit should reach operating temperature before critical listening. It was named best stereo amp at the 2014 What Hi-Fi? Awards.
Video
Specificații
- Marcă
- Rega
- Model
- Elicit-R
- Categorie
- Hi-Fi și audio pentru casă › Amplificatoare
Audio
- Power output into 8 ohms
- 105 Watts per channel
- Power output into 6 ohms
- 127 Watts per channel
- Power output into 4 ohms
- 162 Watts per channel
- Power amplifier gain
- 31.6dB
- Output stage
- Emulated Class A driver, complementary Darlington output transistors
- Preamplifier
- FET discrete line level
- Volume control
- Programmable stepped attenuator
Inputs
- Line inputs 1-5 and record sensitivity
- 196mV, load 10K (input 1 switch set to line)
- Phono input (MM) sensitivity
- 2mV, load 47K in parallel with 220pF (input 1 switch set to phono)
- Direct input sensitivity
- 760mV, load 50K
- Phono stage
- Built-in moving magnet
- Input 1 selection
- Rear panel switch, phono or line
Outputs
- Record output
- 196mV for rated inputs
- Pre-amplifier output
- 760mV for rated inputs
Physical
- Width
- 432mm
- Depth
- 325mm
- Height
- 82mm
- Weight
- 13kg
In the box
- Remote
- Solaris system remote handset
