Ios Reference

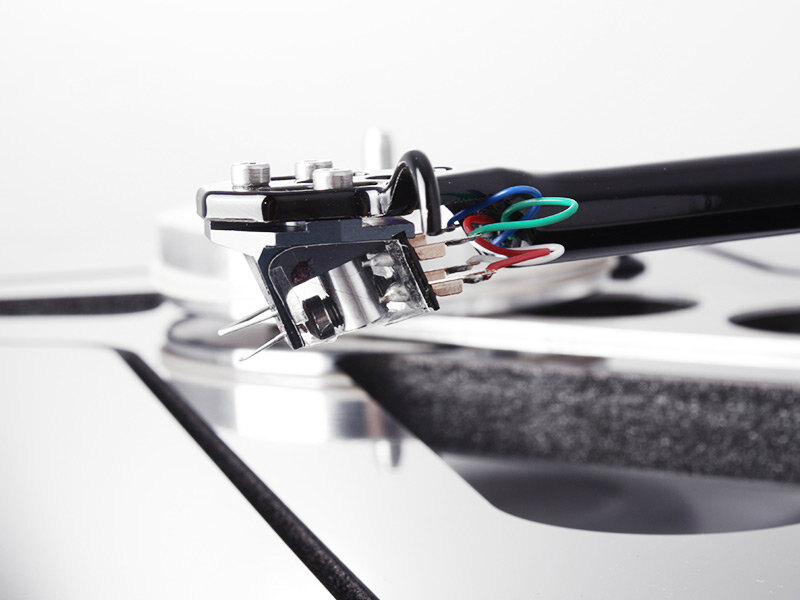

The Ios Reference is a dedicated moving-coil phono stage built in Rega's Reference casework, with a four-stage fully symmetrical design and balanced XLR output. It is aimed at turntable owners using low-output MC cartridges such as the Apheta.
- Dedicated moving-coil phono stage
- Four-stage, all-symmetrical amplifier
- 1:10 step-up transformer in the first stage

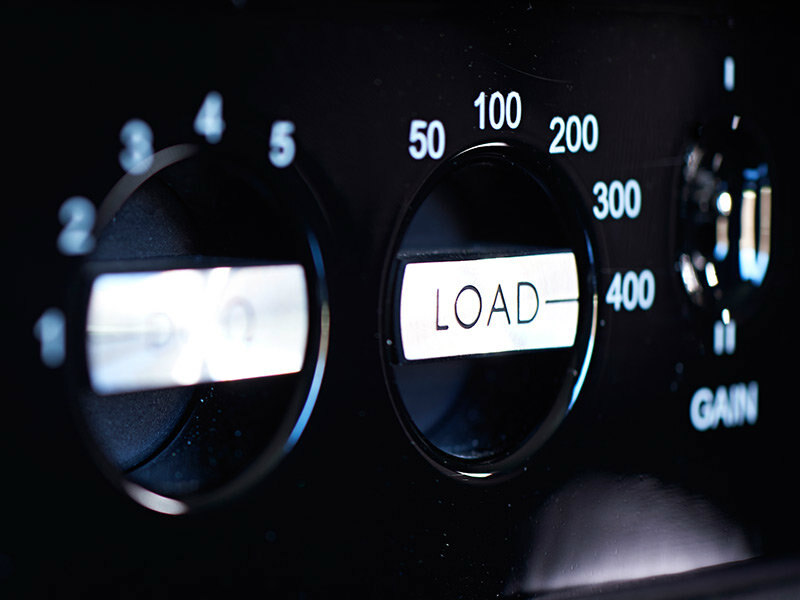

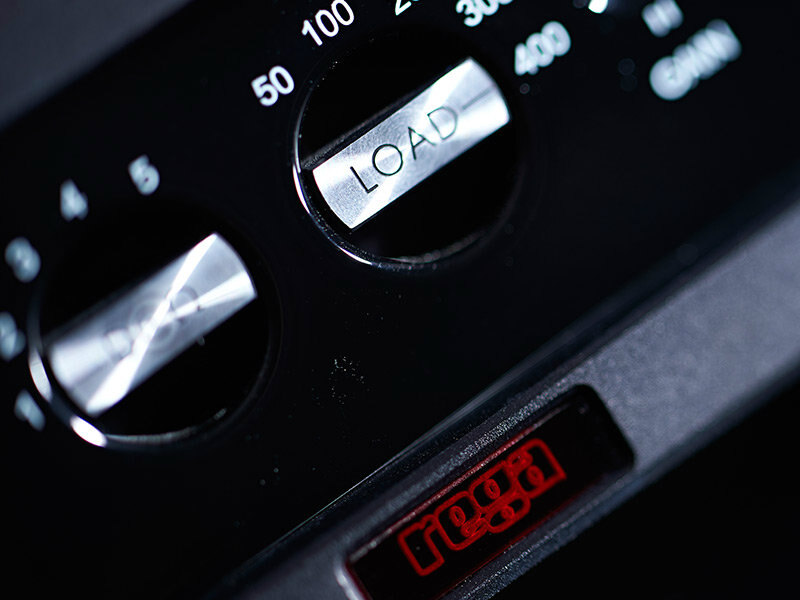

- Adjustable gain and load control
- Balanced XLR output with ultra-low capacitance cabling
- Mute and mono functions
Fotografii
5Anunțuri
Încă nu sunt anunțuri pentru acest model
Când cineva vinde un Ios Reference, anunțurile și istoricul vânzărilor vor apărea aici.
Vinde unul la felDescriere
The Ios Reference is a phono stage devoted solely to moving-coil cartridges. It uses a four-stage, fully symmetrical amplifier. The first stage is a 1:10 step-up transformer whose loading and Zobel DC resistance correction network can be matched to the cartridge. The second and third stages are symmetrical class A designs, with the RIAA equalization split between passive high-frequency and active low-frequency parts. The fourth stage is an active filter built around a very high bandwidth operational amplifier.
The power supply is a symmetrical, discrete tracking design with fast diodes and a low-noise voltage reference. Each stage has its own local supply and LED-referenced current generators. Polypropylene capacitors are used in the signal path, with 1% tolerance parts in the RIAA equalization stages.
Controls include adjustable gain and load, plus mute and mono functions. Inputs use gold-plated sockets, and the output is balanced XLR with ultra-low capacitance cabling. The unit sits in the Reference range casework, matching the Isis and Osiris.
Specificații
- Marcă
- Rega
- Model
- Ios Reference
- Categorie
- Hi-Fi și audio pentru casă › Alt Hi-Fi
Audio
- Cartridge type
- Moving coil (MC)
- Amplifier design
- Four stage, all symmetrical
- First stage
- 1:10 step-up transformer
- Second stage
- Symmetrical compound pair class A
- Third stage
- Symmetrical class A differential amplifier
- Fourth stage
- Active filter
- Gain and load
- Adjustable
- Noise floor
- Reduced
Inputs
- Input sockets
- Gold plated
Outputs
- Output
- Balanced XLR
- Cabling
- Ultra-low capacitance
Controls
- Mute function
- Yes
- Mono function
- Yes
Power
- Power supply
- Symmetrical discrete tracking
- Supply regulation
- Localised supply per stage, LED referenced current generators
Physical
- Casework
- Reference range
- Width
- 434 mm
- Depth
- 350 mm
- Height
- 97 mm
