Move 15 SUB

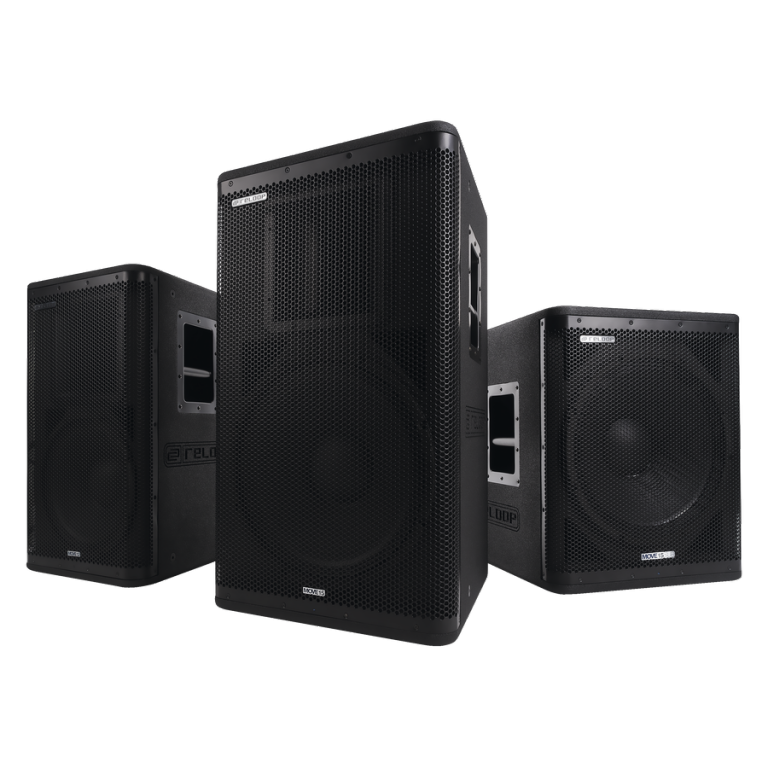

Active 15-inch PA subwoofer with a class D bi-amp module, rated at 1500 W RMS and 3000 W peak, for use alongside the MOVE 12 and MOVE 15 tops in mobile and fixed PA setups. It has a 30 Hz high-pass filter, phase switch and XLR line in/out.
- 15" driver in a bass-reflex cabinet
- 1500 W RMS / 3000 W max, class D bi-amp module
- 35 Hz – 125 Hz (±3 dB) frequency response
- Adjustable 30 Hz HP filter and phase switch
- 2x XLR line in, 2x XLR line out
- 36 mm top flange and rigging points
Fotografii
6Anunțuri
Încă nu sunt anunțuri pentru acest model
Când cineva vinde un Move 15 SUB, anunțurile și istoricul vânzărilor vor apărea aici.
Vinde unul la felDescriere

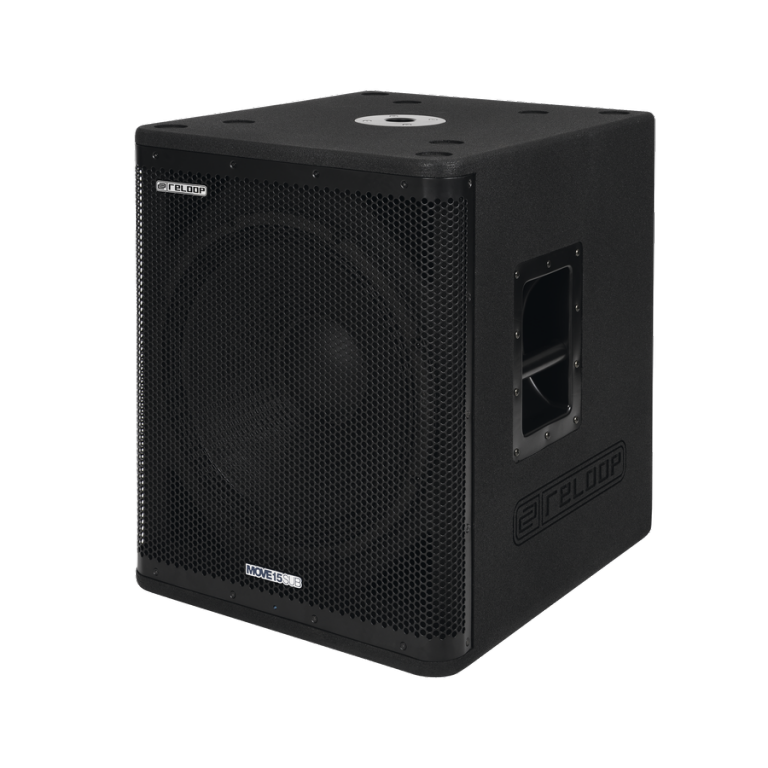

The MOVE 15 SUB is a powered bass-reflex subwoofer built around a 15" low-frequency driver. Its frequency response is 35 Hz – 125 Hz (±3 dB), and the maker quotes a sound pressure level of 128 dB, with 136 dB at peak. A class D bi-amp amplifier module drives it and is matched to the cabinet.

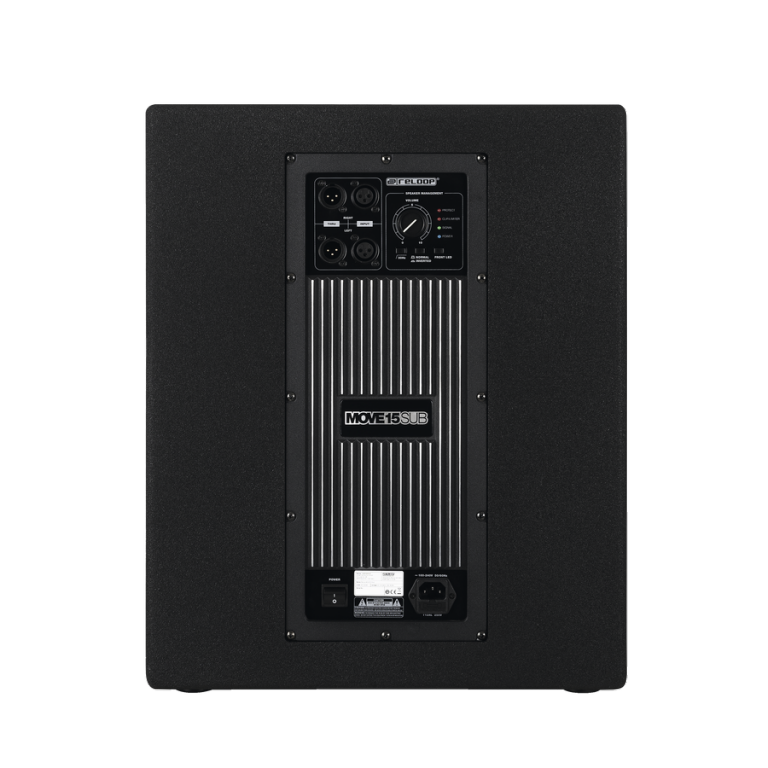

The rear panel has a separate volume control, an adjustable 30 Hz high-pass filter and a phase switch. LEDs show temperature, overmodulation/limiting, input signal level and power status. Connections are two XLR line inputs and two XLR line outputs, and the unit runs on 100–240 V AC through a standard IEC inlet.

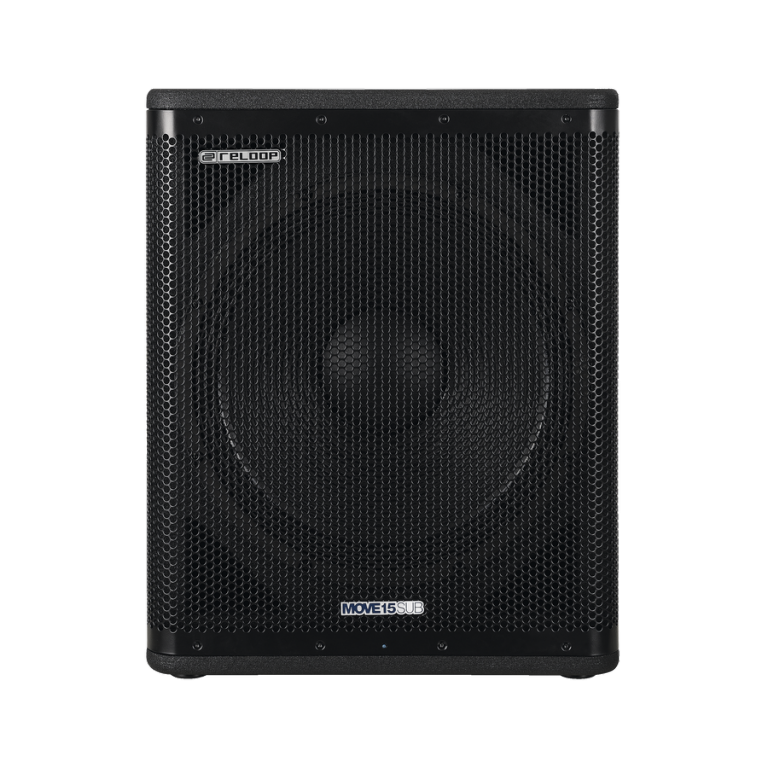

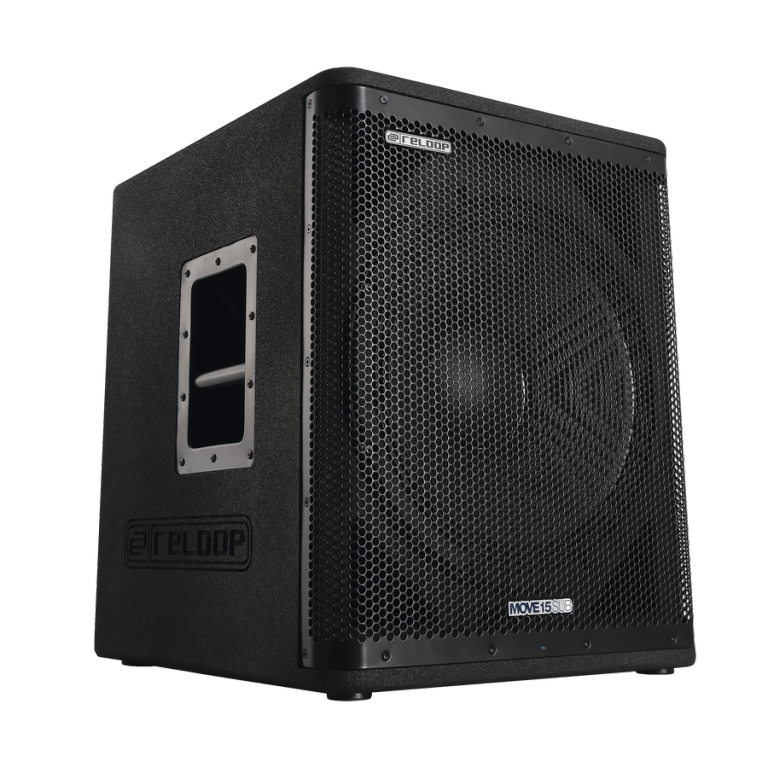

The cabinet is lightweight multiplex wood with a textured black finish and a metal front grille. It has recessed side handles, rubber feet, several rigging points for suspension and a 36 mm flange on top for mounting top speakers on spacer rods. The model is listed as discontinued.
Specificații
- Marcă
- Reloop
- Model
- Move 15 SUB
- Categorie
- Sonorizare live › Boxe PA
Inputs
- Line In
- 2x XLR
Outputs
- Line Out
- 2x XLR
Audio
- Type
- Active PA subwoofer
- Driver
- 15" high-performance low-frequency driver
- Frequency response
- 35 Hz – 125 Hz +/-3 dB
- RMS output
- 1500 W
- Max. output
- 3000 W
- Sound pressure level
- 128 dB/136 dB (peak)
- Amplifier
- Class D bi-amp module
- High-pass filter
- Adjustable, 30 Hz
- Phase
- Switchable
Power
- Mains voltage
- AC100V – AC240V
- Mains connection
- Standard IEC
Physical
- Dimensions
- 440 x 500 x 545 mm
- Weight
- 29.00 kg
- Housing
- Multiplex wood, black textured paintwork
- Mounting
- 36 mm flange for stands, rigging points
