JX-08
Tabletop sound module that recreates the Roland JX-8P hybrid analog-digital synth, with the PG-800 programmer controls on its panel. It suits keyboardists and producers who want that sound in a portable unit with sequencer, effects and USB-C audio/MIDI.
- Recreation of the 1985 Roland JX-8P with PG-800 style panel controls
- 32 original JX-8P presets plus 111 new presets
- 17 effect types incl. JUNO-106 chorus and SDD-320 reverb
- Two-part 64-step polyphonic sequencer, 128 pattern memory
- USB-C audio/MIDI, MIDI In/Out and external clock input
- Runs on 4 x AA batteries or USB-C, built-in speaker
Fotografii
6Anunțuri
Încă nu sunt anunțuri pentru acest model
Când cineva vinde un JX-08, anunțurile și istoricul vânzărilor vor apărea aici.
Vinde unul la felDescriere

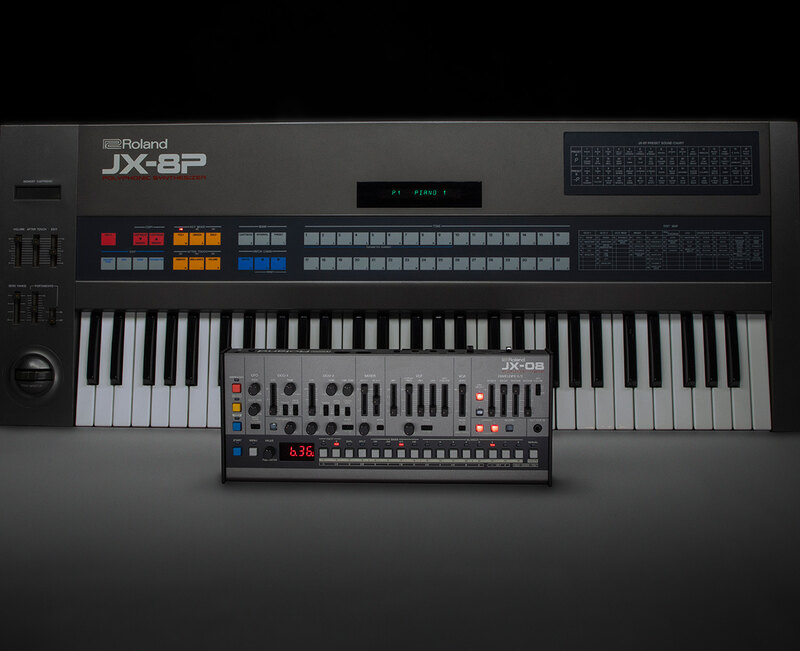

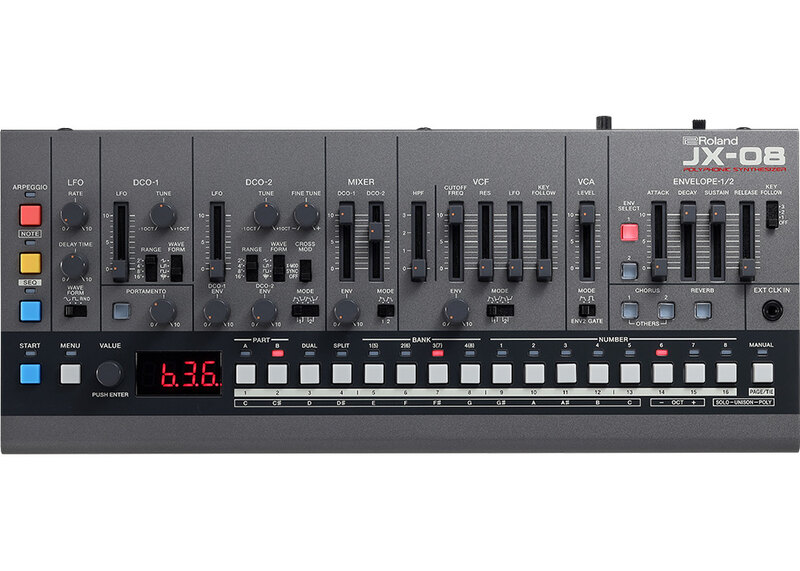

The JX-08 is a compact sound module from the Roland Boutique range that models the 1985 JX-8P. It keeps the original voice design and adds expanded polyphony, two-part multitimbral operation with dual and split modes, and 256 patch slots. The panel carries the hands-on controls of the PG-800 programmer, and the factory bank combines 32 original JX-8P presets with 111 new ones.
Seventeen effect types are included, covering chorus (with a JUNO-106 chorus), phaser, delay, overdrive, fuzz, bit crusher, a lo-fi compressor, filter, pitch shifter and an SDD-320 reverb. A two-part, 64-step polyphonic sequencer offers motion recording, a random pattern generator and memory for 128 patterns, and an arpeggiator is built in.

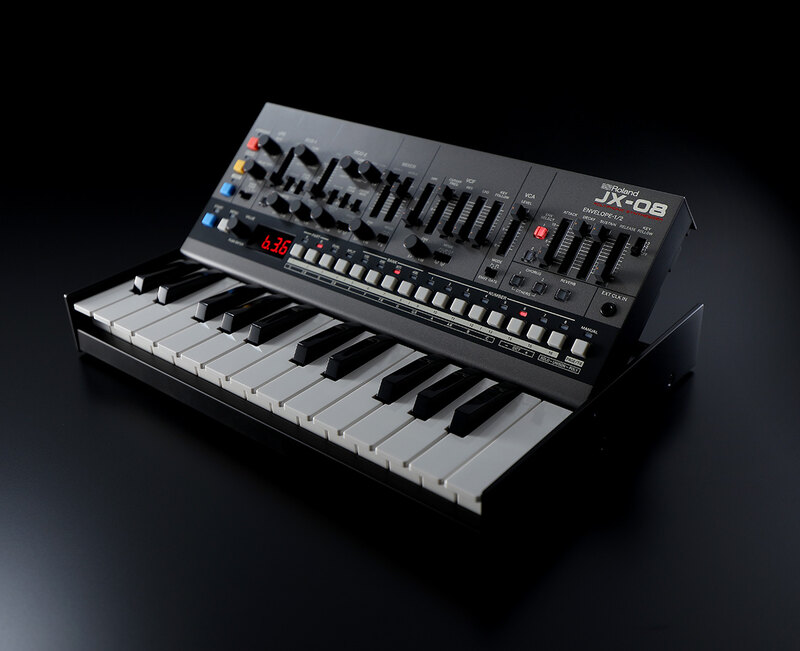

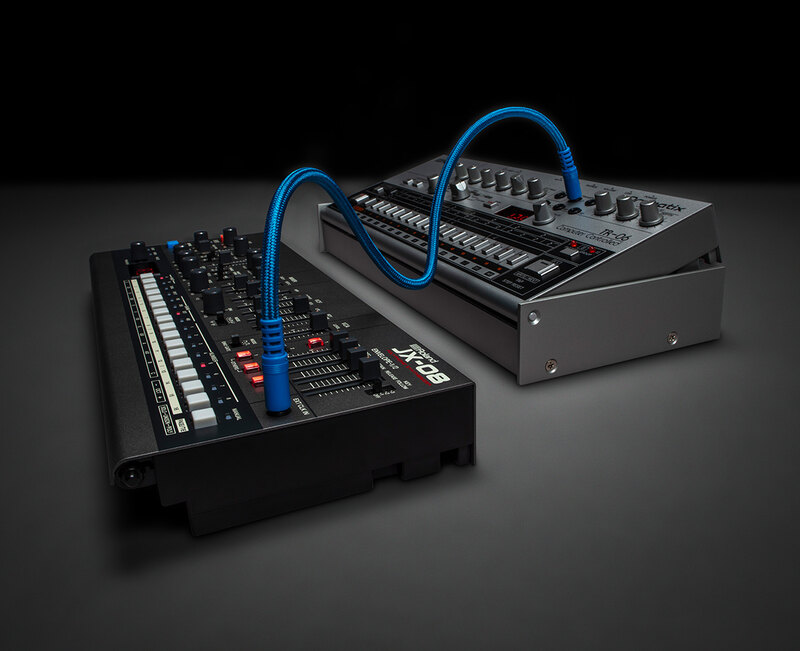

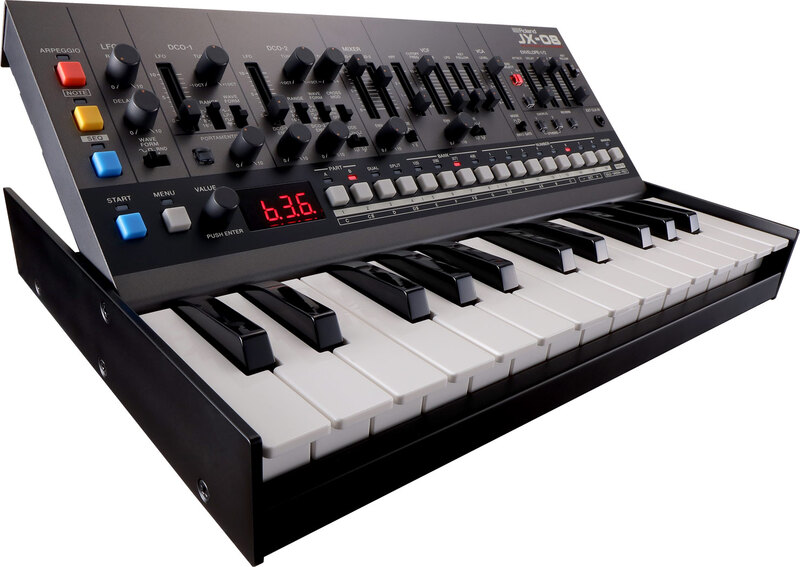

A USB-C port carries audio and MIDI to a computer, and full-size MIDI In and Out connect other hardware. An external clock input lets vintage analog gear or Eurorack systems drive the sequencer and arpeggiator. The unit runs on four AA batteries or USB power, has a small built-in speaker, and can be paired with the optional DK-01 Boutique Dock or K-25m keyboard unit.
Video
Specificații
- Marcă
- Roland
- Model
- JX-08
- Categorie
- Sintetizatoare și claviaturi › Sintetizatoare
Memory
- Sound patches
- 256
- Patterns
- 128
Sound and Effects
- Chorus
- 3
- Delay
- 4
- Phaser
- 2
- Pitch shifter
- 2
- Other effects
- Overdrive, Fuzz, Drive, Bit crusher, LOFI Comp, Filter
- Multitimbral
- Two-part, with dual and split
Sequencer
- Steps
- 64 steps
- Polyphony
- 4 notes (polyphonic)
- Arpeggiator
- Yes
Display
- Display
- 7 segments, 4 characters (LED)
Connectivity
- EXT CLOCK IN
- Mono miniature phone type
- PHONES
- Stereo miniature phone type
- OUTPUT
- Stereo miniature phone type
- MIX IN
- Stereo miniature phone type
- MIDI
- IN, OUT connectors
- USB
- USB Type-C (Audio, MIDI)
Power
- Power supply
- 4 x AA Ni-MH (HR6) or Alkaline (LR6) batteries; USB bus power
- Current draw
- 500 mA (USB bus power)
- Battery life
- Approx. 6 hours (Ni-MH, 1,900 mAh, continuous use)
Physical
- Width
- 300 mm (11-13/16 inches)
- Depth
- 128 mm (5-1/16 inches)
- Height
- 47 mm (1-7/8 inches)
- Weight (with batteries)
- 895 g (2 lbs)
In the box
- Included
- Quick Start, leaflet "USING THE UNIT SAFELY", 4 x AA alkaline batteries (LR6)
- Options (sold separately)
- K-25m keyboard unit, DK-01 Boutique Dock
