KC-200
Compact 100 W keyboard amplifier with a 12-inch woofer and tweeter, built-in four-channel mixer plus aux input. Aimed at players of stage pianos, synths, organs and drum machines who want a self-contained stage or practice rig.
- 100 W output with 12-inch woofer and tweeter
- Four 1/4-inch line channels plus aux input (1/8-inch and RCA)
- Channel 1 also takes an XLR vocal mic
- Channel 4 monitors click/guide tracks, kept off line out
- Line out, Sub Out and headphones output
- Weighs 15 kg; 480 x 435 x 295 mm
Fotografii
5Anunțuri
Încă nu sunt anunțuri pentru acest model
Când cineva vinde un KC-200, anunțurile și istoricul vânzărilor vor apărea aici.
Vinde unul la felDescriere

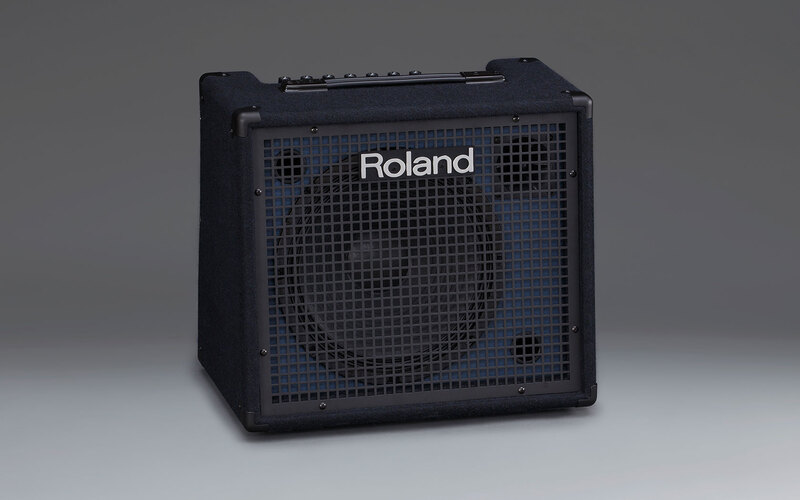

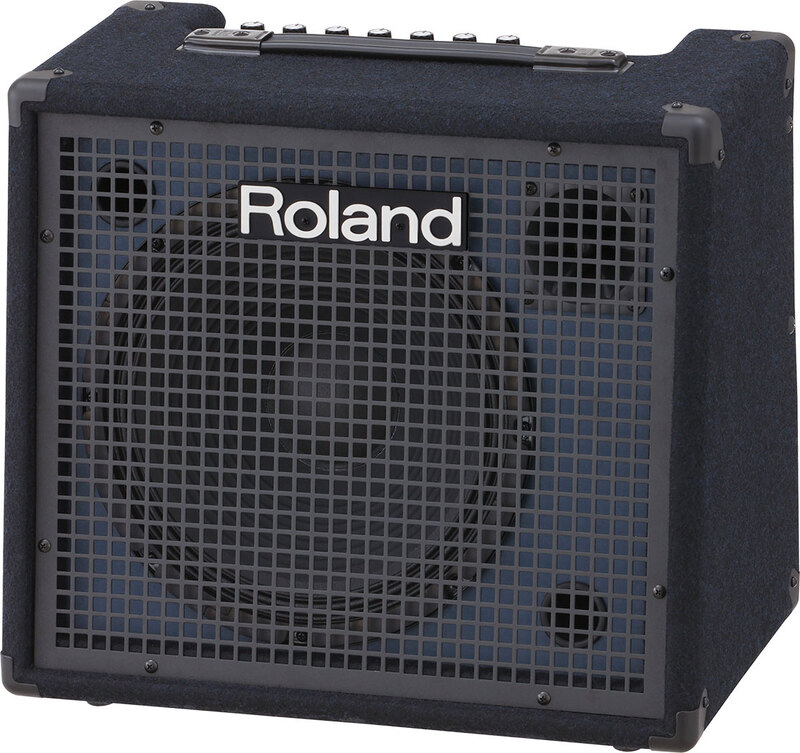

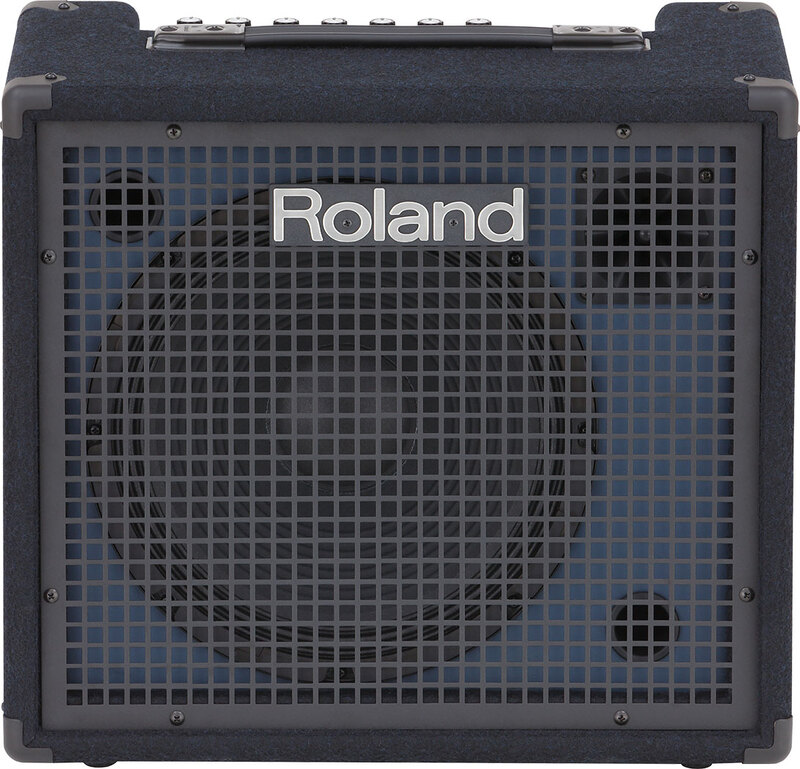

The KC-200 is a 100-watt keyboard amplifier with a two-way speaker system: a 12-inch woofer and a tweeter in a twin bass-reflex cabinet. Compared with the KC-150 it has a redesigned power amp and power supply for higher output, better stability and fuller bass, along with an upgraded woofer. It is meant for 88-note stage pianos, organs, synthesizers, rhythm machines and other electronic instruments.
The onboard mixer offers four 1/4-inch line channels, an auxiliary input with 1/8-inch stereo and RCA jacks for phones or players, and a two-band EQ (low and high) with a master volume. Channel 1 also has an XLR input for a vocal mic. Channel 4 is a monitor channel for click or guide tracks that is heard through the amp's speakers and headphones but is not sent to the line output.
For connection, a 1/4-inch line output feeds PA systems, stage monitors or recorders, and a Sub Out jack drives a powered subwoofer, with its level following the master volume. Plugging in headphones mutes the internal speakers and Sub Out. The jacks are metal for durability.
Video
Specificații
- Marcă
- Roland
- Model
- KC-200
- Categorie
- Sintetizatoare și claviaturi › Alte claviaturi
Audio
- Rated power output
- 100 W
- Speakers
- 30 cm (12 inches) woofer x 1, tweeter x 1
- Cabinet design
- Twin bass-reflex
- Equalizer
- LOW and HIGH knobs

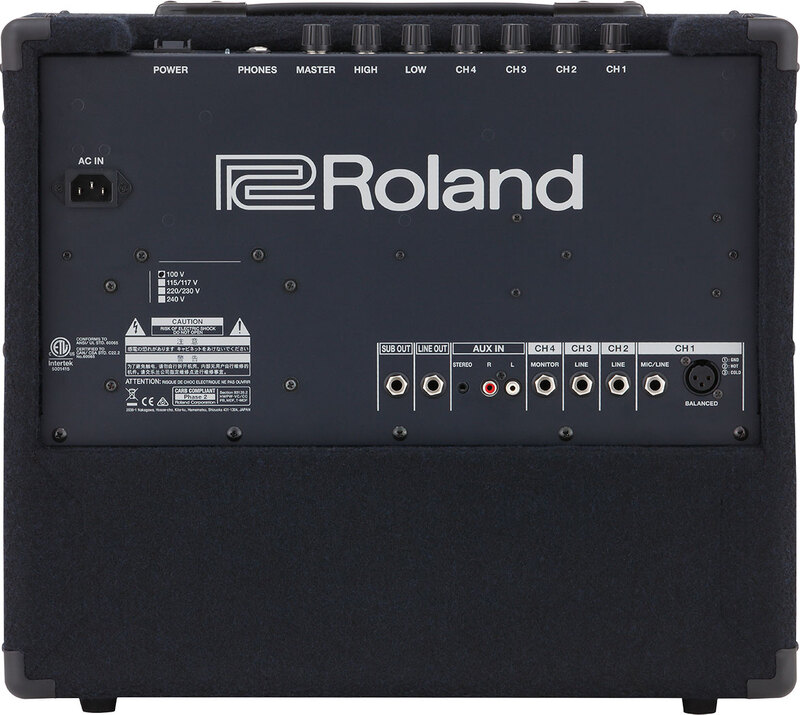

Inputs
- CH1 nominal input level (1 kHz)
- -50 to -20 dBu (XLR type, MIC/LINE)
- CH2 nominal input level (1 kHz)
- -20 dBu (LINE)
- CH3 nominal input level (1 kHz)
- -20 dBu (LINE)
- CH4 nominal input level (1 kHz)
- -20 dBu (MONITOR)
- AUX IN nominal input level (1 kHz)
- -10 dBu (L, R, STEREO)
- CH1 jacks
- XLR type; 1/4-inch phone type (MIC/LINE)
- CH2 / CH3 jacks
- 1/4-inch phone type (LINE)
- CH4 jack
- 1/4-inch phone type (MONITOR)
- AUX IN jacks
- RCA phono type (L, R); stereo miniature phone type (STEREO)
Outputs
- LINE OUT nominal output level (1 kHz)
- +4 dBu
- SUB OUT nominal output level (1 kHz)
- +4 dBu
- LINE OUT jack
- 1/4-inch phone type
- SUB OUT jack
- 1/4-inch phone type
- PHONES jack
- 1/4-inch TRS phone type (mono signal output)

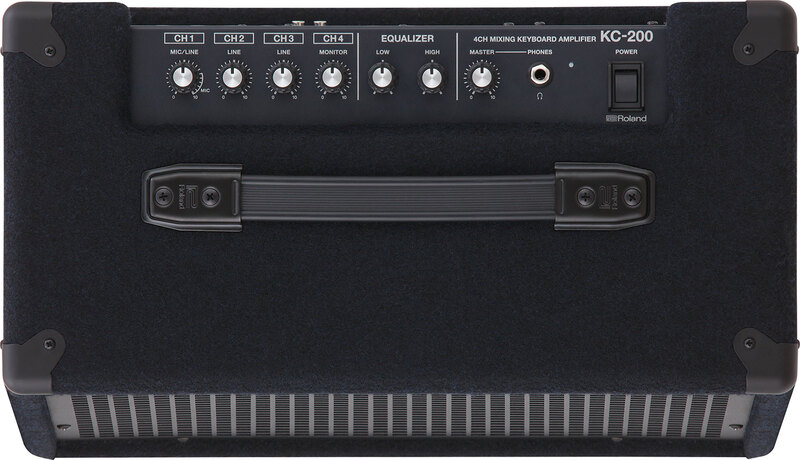

Controls
- Controls
- POWER switch; CH1 MIC/LINE, CH2 LINE, CH3 LINE, CH4 MONITOR knobs; EQUALIZER LOW and HIGH knobs; MASTER knob
- Indicator
- Power
Power
- Power consumption
- 70 W
Physical
- Width
- 480 mm (18-15/16 inches)
- Depth
- 295 mm (11-5/8 inches)
- Height
- 435 mm (17-1/8 inches)
- Weight
- 15 kg (33 lbs 2 oz)
In the box
- Accessory
- Owner's Manual
- Option (sold separately)
- Speaker stand: ST-A95
