OCTA-CAPTURE
Compact USB 2.0 audio interface with eight digitally controlled mic preamps, ten inputs and ten outputs, and 24-bit/192 kHz conversion. Aimed at multi-channel recording of bands and drum kits, and at expanding the I/O of V-STUDIO 700 and V-STUDIO 100 systems.
- 8 digitally controlled mic preamps with XLR inputs
- AUTO-SENS sets input levels automatically
- 10 in / 10 out at up to 96 kHz; 4 in / 4 out at 192 kHz
- 4 independent software-controlled Direct Mixers, 40-bit DSP
- ASIO 2.0/WDM and Core Audio drivers
- Rackmount angles included
Fotografii
6Anunțuri
Încă nu sunt anunțuri pentru acest model
Când cineva vinde un OCTA-CAPTURE, anunțurile și istoricul vânzărilor vor apărea aici.
Vinde unul la felDescriere

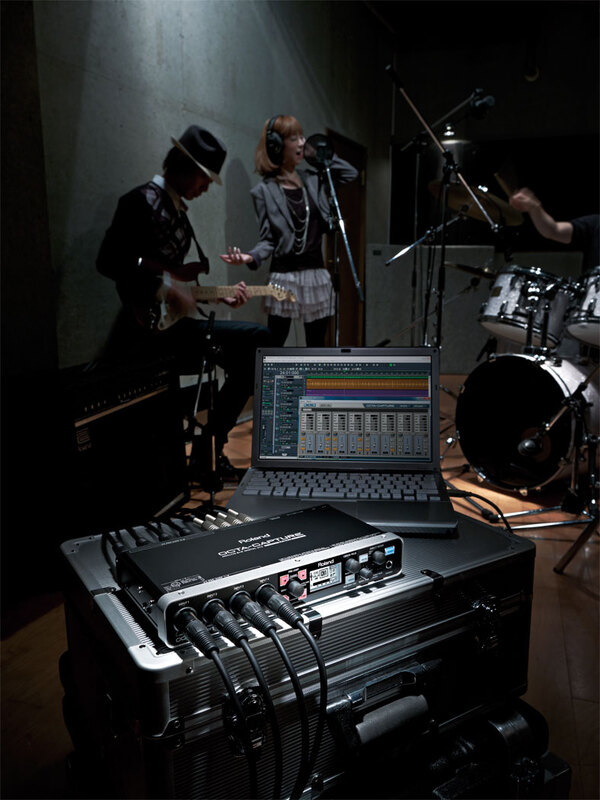

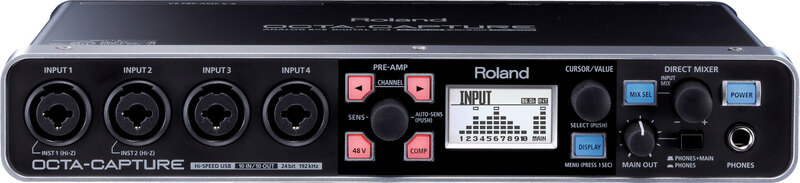

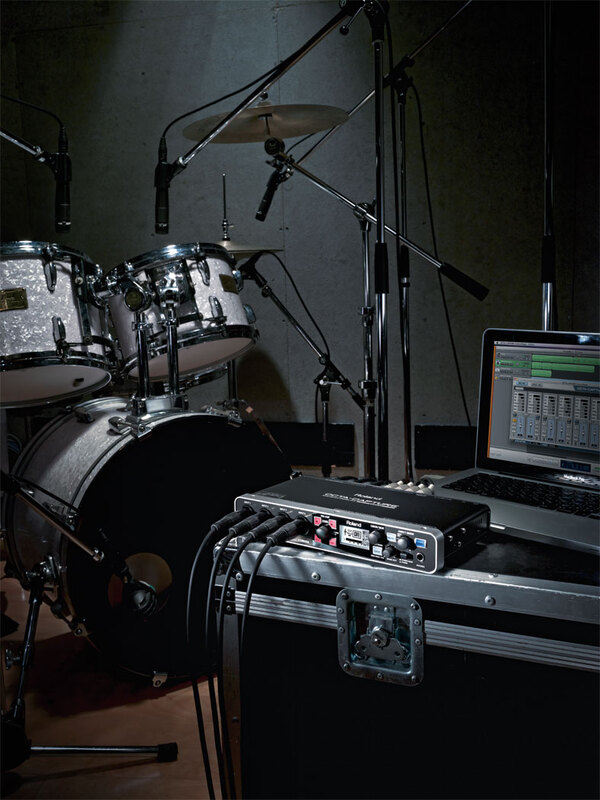

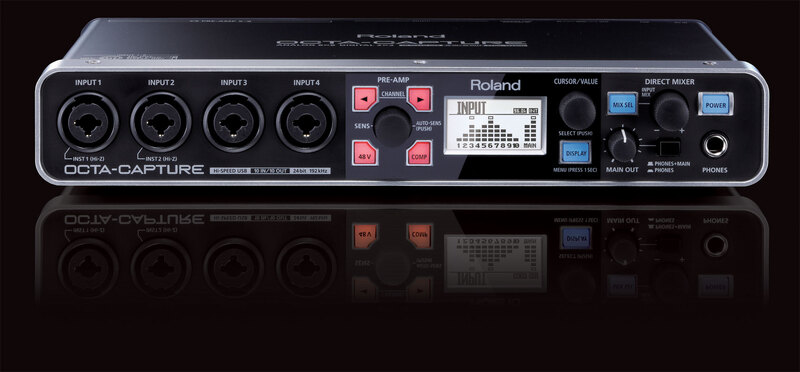

The unit provides eight XLR/TRS combination inputs, each feeding a digitally controlled preamp with its own phantom power, low-cut filter, phase invert and digital compression. An AUTO-SENS function sets the recording level on every input automatically after a button press while the instruments are played, which suits sessions with a fully miked drum kit or a whole band.

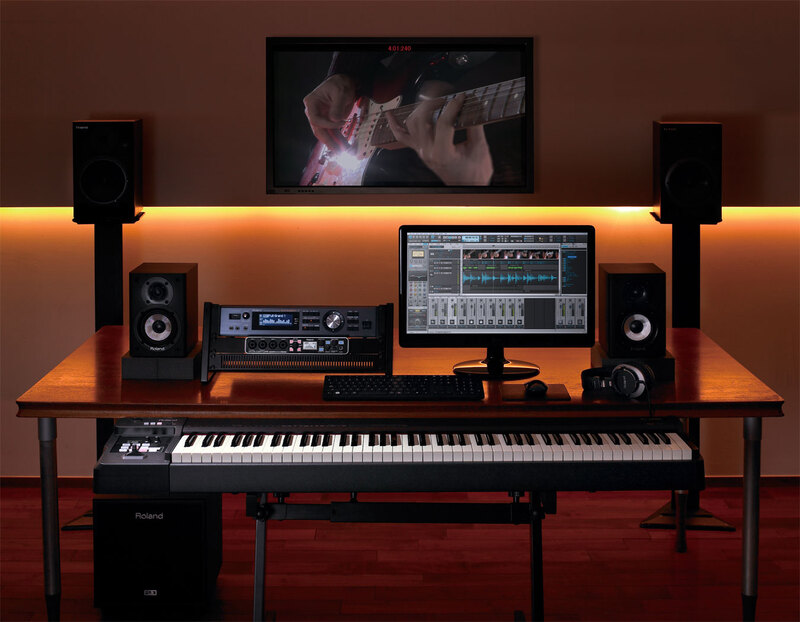

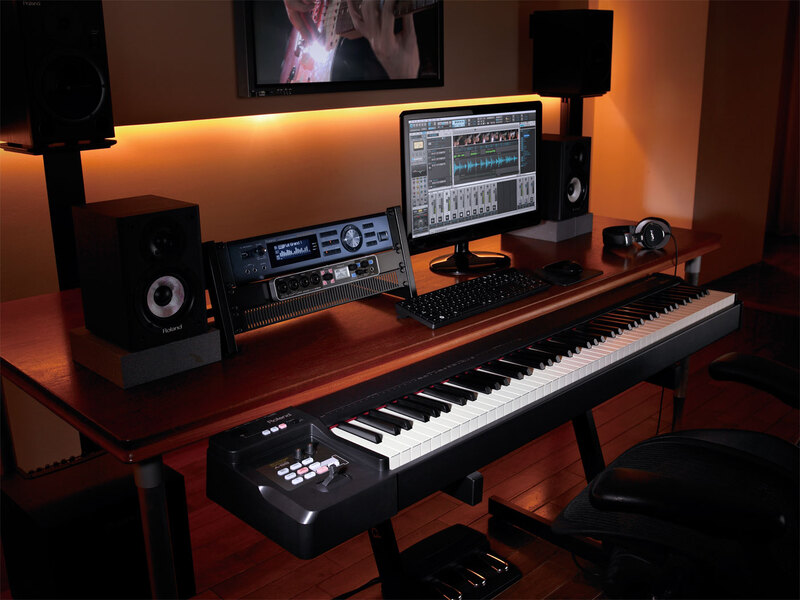

Audio reaches the computer over USB 2.0 through a proprietary low-latency streaming driver, with ASIO 2.0/WDM on Windows and Core Audio on Mac. Two units, or one unit alongside a V-STUDIO 100 or V-STUDIO 700, can share the same USB bus. Four independent software-controlled Direct Mixers use internal 40-bit DSP and can be routed to any analog output, for example to build separate headphone or speaker monitor mixes.
Outputs include eight balanced 1/4 inch TRS jacks and a stereo headphone jack. Coaxial digital input and output and MIDI In/Out are also fitted. The interface runs from an AC adaptor and ships with rack-mount angles.
Video
Specificații
- Marcă
- Roland
- Model
- OCTA-CAPTURE
- Categorie
- Studio › Plăci de sunet
Inputs
- Mic preamps
- 8 (VS PREAMP)
- Input jacks 1–8
- XLR type (balanced, phantom power +48 V) / 1/4 inch TRS phone type (balanced)
- Nominal input level, jacks 1–6 (XLR)
- -56 to -6 dBu
- Nominal input level, jacks 7–8 (XLR)
- -50 to +0 dBu
- Nominal input level, jacks 1–8 (TRS)
- -46 to +4 dBu
- Input impedance, jacks 1–6 (XLR)
- 5 k ohms (balanced)
- Input impedance, jacks 7–8 (XLR)
- 10 k ohms (balanced)
- Input impedance, jacks 1–8 (TRS)
- 17 k ohms (balanced)
Outputs
- Output jacks 1–8
- 1/4 inch TRS phone type (balanced)
- Nominal output level, outputs 1–8
- +0 dBu (balanced)
- Output impedance, outputs 1–8
- 1.8 k ohms (balanced)
- Headphones jack
- Stereo 1/4 inch phone type
- Headphones output impedance
- 47 ohms
Connectivity
- USB
- USB connector (Hi-Speed USB 2.0)
- Digital I/O
- Coaxial input and coaxial output
- MIDI
- In, Out
- Drivers
- ASIO 2.0/WDM (Windows), Core Audio (Mac)
Audio
- Channels at 44.1/48/96 kHz
- Record: 10 channels, Playback: 10 channels
- Channels at 192 kHz
- Record: 4 channels, Playback: 4 channels
- AD/DA conversion
- 24 bits
- Internal signal processing
- 40 bits
- Sampling frequency (AD/DA)
- 44.1/48/96/192 kHz
- Sampling frequency (digital in/out)
- 44.1/48/96 kHz
- Frequency response, 192.0 kHz
- 20 Hz to 90 kHz (+0/-8 dB); 20 Hz to 60 kHz (+0/-2 dB)
- Frequency response, 96.0 kHz
- 20 Hz to 40 kHz (+0/-2 dB)
- Dynamic range, AD block
- 104 dB typ. (INPUT 1–8, GAIN: min.)
- Dynamic range, DA block
- 113 dB typ. (OUTPUT 1–8)
- Residual noise level, MAIN OUT
- -87 dBu typ. (GAIN: min., IHF-A)
Power
- Power supply
- DC 9 V (AC adaptor)
- Current draw
- 1.45 A
Physical
- Display
- 128 x 64 dots graphic LCD (backlit)
- Width
- 284 mm (11-3/16 inches)
- Depth
- 158 mm (6-1/4 inches)
- Height
- 50 mm (2 inches)
- Weight
- 1.3 kg (2 lbs. 15 oz.)
In the box
- Included items
- Rack Mount Angle x 2, Owner's Manual, Driver CD-ROM, AC Adaptor, USB cable
