Descriere

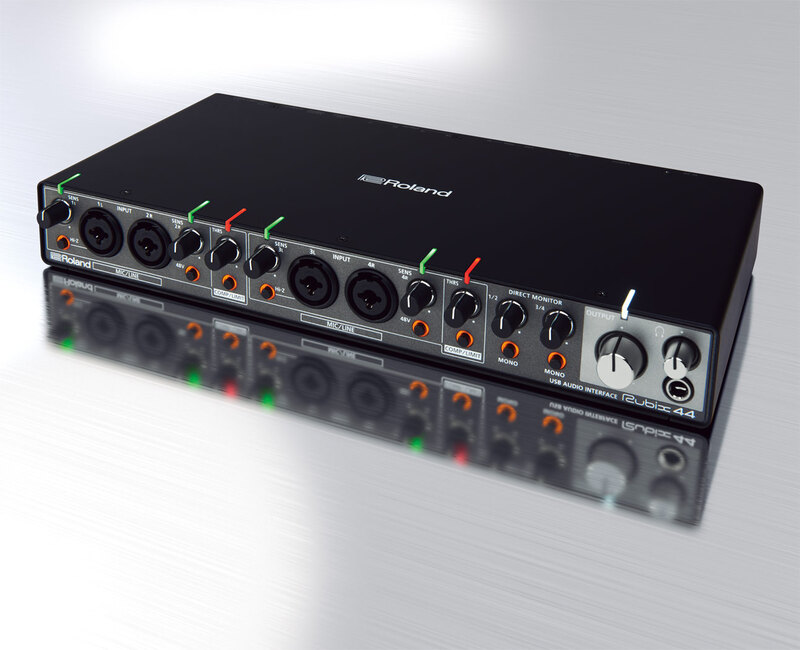

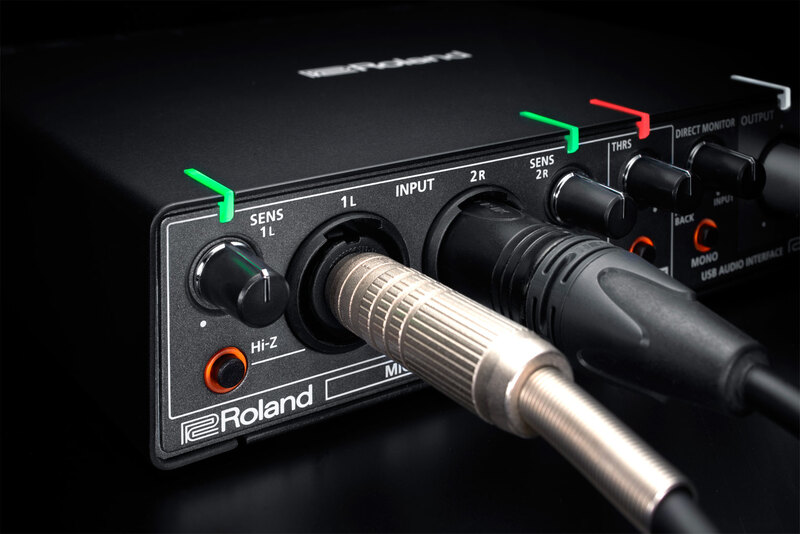

Rubix44 is a desktop USB audio interface with four inputs and four outputs, converting at up to 24-bit/192 kHz. Each input has a combo connector with a low-noise mic preamp, and inputs 1 and 3 add a Hi-Z mode for guitar, bass and other high-impedance sources. Line-level gear such as keyboards and drum machines can be connected to the same jacks.
Analog compressor/limiters cover inputs 1/2 and 3/4 and are adjusted from the panel, with no added latency. Front-panel knobs set output and headphone levels, and two Direct Monitor controls provide latency-free monitoring without a software mixer. Signal and clip indicators can be seen from both the front and the top of the unit, and ground lift switches help reduce noise in different venues.
The unit connects to a computer over Hi-Speed USB (Type B) using class-compliant drivers, and works with Mac, Windows and iPad. It also has MIDI In and Out ports, four 1/4-inch TRS outputs, a headphone output and an external power supply. The metal chassis is compact, and six months of Roland Cloud Pro membership is included.
Specificații
- Marcă
- Roland
- Model
- Rubix44
- Categorie
- Studio › Plăci de sunet
Audio
- Record channels
- 4
- Playback channels
- 4
- PC interface resolution
- 24 bits
- AD/DA conversion
- 24 bits
- Sampling frequencies
- 44.1 kHz, 48 kHz, 96 kHz, 192 kHz
- Dynamic range (AD, typ.)
- 104 dB
- Dynamic range (DA, typ.)
- 109 dB
- Residual noise level
- -94 dBu typ. (INPUT 1L, 2R to OUTPUT 1L, 2R)
- Headroom
- 14 dB
Inputs
- XLR inputs (1L, 2R, 3L, 4R)
- XLR, balanced, phantom power +48 V, 6 mA max per channel
- Line/instrument inputs
- 1/4-inch TRS phone, balanced (1L, 2R, 3L, 4R)
- Hi-Z inputs
- INPUT 1L, 3L
- Nominal input level (XLR)
- -60 to -12 dBu
- Nominal input level (TRS)
- -44 to +4 dBu
- Maximum input level (XLR)
- +2 dBu
- Maximum input level (TRS)
- +18 dBu
- Input impedance (XLR)
- 4 k ohms or greater (balanced)
- Input impedance (TRS)
- 15 k ohms or greater (balanced)
- Input impedance (Hi-Z, 1L, 3L)
- 500 k ohms or greater
Outputs
- Line outputs (1L, 2R, 3L, 4R)
- 1/4-inch TRS phone, impedance balanced
- Nominal output level
- -6 dBu
- Maximum output level
- +8 dBu
- Output impedance
- 2 k ohms (balanced)
- Headphone jack
- Stereo 1/4-inch phone
- Headphone max output power
- 20 mW + 20 mW (47 ohms load)
- Headphone output impedance
- 47 ohms
Connectivity
- USB
- Hi-Speed USB, Type B
- MIDI
- MIDI IN, OUT
- Drivers
- Class compliant
Software
- Supported OS
- Windows 7, 8, 8.1, 10; Mac OS X 10.10 or later; iOS 9 or later
- Included membership
- Six months of Roland Cloud Pro
Power
- Power supply
- AC adaptor
Physical
- Dimensions (W x D x H)
- 310 x 165 x 46 mm (12-1/4 x 6-1/2 x 1-13/16 in)
- Weight (main unit only)
- 1.8 kg (4 lbs)
In the box
- Included accessories
- Setup Guide, Leaflet "USING THE UNIT SAFELY", power cord, USB cable
