EW 500 G4-935
A wireless handheld microphone set for live performance, pairing the SKM 500 G4 transmitter with an MMD 935-1 cardioid dynamic capsule and an EM 300-500 G4 true diversity half-rack receiver. Suited to touring, stage and multi-channel setups that need frequency coordination.

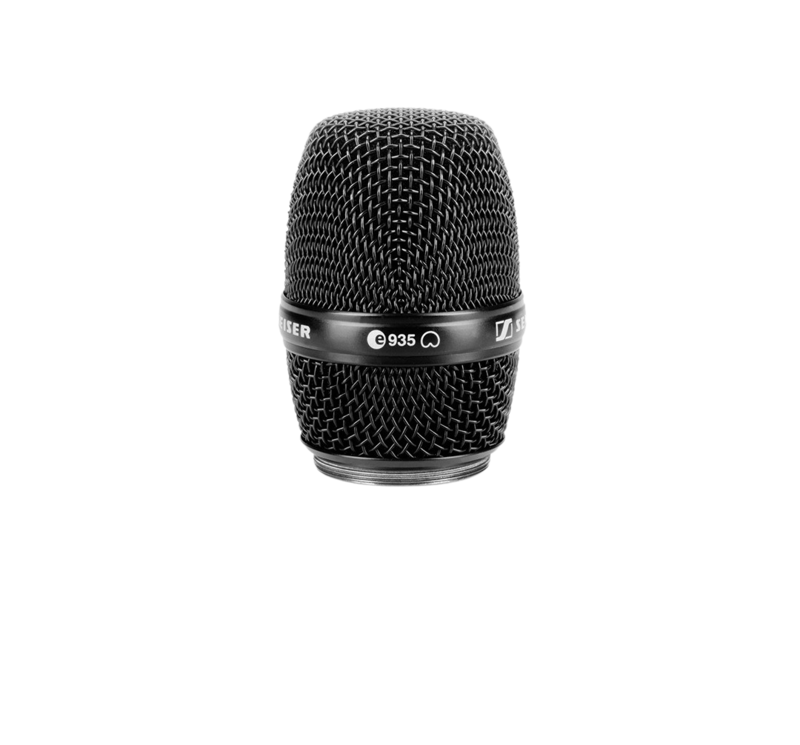

- SKM 500 G4 handheld with MMD 935-1 cardioid dynamic capsule
- True diversity half-rack receiver with OLED display
- Up to 88 MHz bandwidth, 3520 frequencies, up to 32 channels
- RF output 10/30/50 mW, depending on country regulations
- Ethernet port for Wireless Systems Manager (WSM) software
- Infrared sync; GA 3 rack kit included
Fotografii
5Anunțuri
Încă nu sunt anunțuri pentru acest model
Când cineva vinde un EW 500 G4-935, anunțurile și istoricul vânzărilor vor apărea aici.
Vinde unul la felDescriere
The set combines a black aluminium SKM 500 G4 handheld transmitter, fitted with the MMD 935-1 cardioid dynamic capsule, and an EM 300-500 G4 receiver in a full-metal half-rack housing. The receiver uses true diversity reception and has an OLED display for controlling settings. A GA 3 rack kit and a microphone clamp are supplied.
Transmitter and receiver are synchronised by infrared. The system offers up to 88 MHz of bandwidth with 3520 selectable frequencies and up to 32 compatible channels, which suits multi-channel installations. RF output can be set to 10, 30 or 50 mW, depending on country regulations. The transmitter runs on two AA batteries, with a typical operating time of 8 hours.
On the back of the receiver, the audio output is a 6.3 mm unbalanced jack socket. An Ethernet port connects to Sennheiser's Wireless Systems Manager (WSM) software for frequency coordination across several systems. The package is sold in several frequency ranges, with a separate frequency sheet for each.
Video
Specificații
- Marcă
- Sennheiser
- Model
- EW 500 G4-935
- Categorie
- Sonorizare live › Sisteme wireless
Receiver
- Receiver principle
- True diversity
- RF sensitivity
- < 2.5 μV for 52 dBA eff S/N
- Squelch
- 5 to 25 dBμV in steps of 2 dB
- Display
- OLED
Radio
- Bandwidth
- Up to 88 MHz
- Selectable frequencies
- 3520
- Compatible channels
- Up to 32
- RF output power
- Up to 50 mW, adjustable 10/30/50 mW
- Synchronisation
- Infrared
Audio
- Transducer principle
- dynamic
- Audio frequency response
- 80 to 18,000 Hz
- Sensitivity
- 2.5 mV/Pa
- Signal-to-noise ratio
- ≥ 115 dBA
- Total harmonic distortion (THD)
- ≤ 0.9 %
Outputs
- Audio output
- 6.3 mm jack socket (unbalanced): +12 dBu
Connectivity
- Network
- Ethernet for Wireless Systems Manager (WSM)
Power
- Battery operating time
- Typically 8 h
- Transmitter batteries
- 2 AA
Physical
- Dimensions
- Approx. 202 x 212 x 43 mm
- Weight
- Approx. 980 g
In the box
- Receiver
- EM 300-500 G4 true diversity receiver
- Transmitter
- SKM 500 G4 handheld transmitter
- Microphone head
- MMD 935-1
- Accessories
- MZQ 1 microphone clamp, GA 3 rackmount set, 2 rod antennas, power supply, 2 AA batteries
