EW-D ME2 Set
Digital UHF wireless lavalier set combining a rack-mount receiver, a bodypack transmitter and the ME 2 omnidirectional clip-on microphone. Aimed at speakers and presenters who need a robust, app-managed wireless system for daily stage use.
- Digital UHF system, Q1 range 470.2–526 MHz
- ME 2 omnidirectional clip-on lavalier microphone
- 134 dB audio input dynamic range, no gain adjustment
- Up to 90 channels, 600 kHz equidistant tuning grid
- Smart Assist app control via Bluetooth Low Energy
- Up to 8 h on AA batteries, 12 h with Li-Ion pack
Fotografii
8Anunțuri
Încă nu sunt anunțuri pentru acest model
Când cineva vinde un EW-D ME2 Set, anunțurile și istoricul vânzărilor vor apărea aici.
Vinde unul la felDescriere

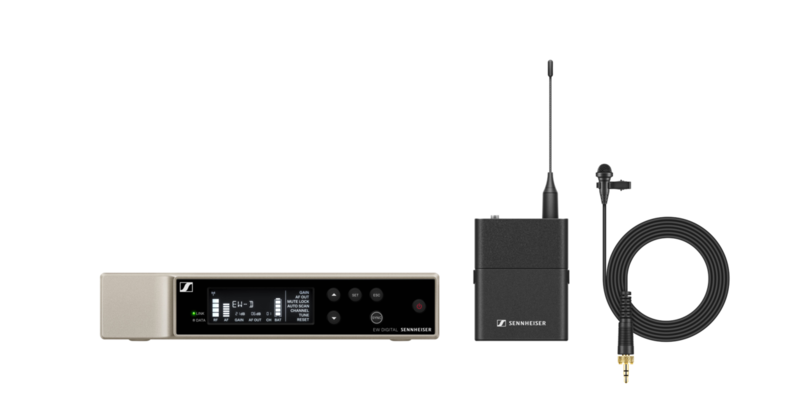

The EW-D ME2 Set pairs an EW-D EM half-rack receiver with an EW-D SK metal-housed bodypack transmitter and an ME 2 omnidirectional pre-polarized condenser lavalier. It transmits digitally in the UHF band, and this Q1-6 version covers 470.2–526 MHz. The microphone is built for clear speech pickup and handles sound pressure levels up to 130 dB.
The system has a 134 dB audio input dynamic range, so no sensitivity adjustment is needed. Because intermodulation between transmitters is eliminated, channels can sit on an equidistant 600 kHz grid. With 56 MHz of tuning bandwidth and 2,240 selectable frequencies, up to 90 channels can run together. An auto scan function finds a usable frequency quickly.
Setup and remote monitoring are handled through the Smart Assist app on Android or iOS, which connects over Bluetooth Low Energy. The transmitter runs on two AA batteries for up to 8 hours, or up to 12 hours with a separately sold lithium-ion pack. The receiver ships with a rackmount set, rod antennas and a power supply with country adapters.
Video
Specificații
- Marcă
- Sennheiser
- Model
- EW-D ME2 Set
- Categorie
- Sonorizare live › Sisteme wireless
Microphone
- Transducer principle
- pre-polarized condensor microphone
- Polar pattern
- Omnidirectional
- Max. sound pressure level
- 130 dB
- Equivalent noise level
- 32 dB
- Cable length
- approx. 1.60 m
Audio
- Audio frequency response
- 20 Hz - 20 kHz (-3 dB) @ 3 dBfs
- Frequency response
- 50 to 18,000 Hz
- Total harmonic distortion (THD)
- ≤ -60 dB for 1 kHz @ -3 dBfs input level
- Audio output level
- 18 dBu max.
- Audio input dynamic range
- 134 dB
Wireless
- Frequency range
- Q1-6 (470.2-526 MHz)
- Tuning bandwidth
- 56 MHz
- Selectable frequencies
- 2,240
- Channel spacing
- 600 kHz equidistant grid
- Max. channels
- up to 90
Connectivity
- Remote control
- Smart Assist App via Bluetooth Low Energy
- Transmission power (BLE)
- max. 10 mW EIRP
Power
- Battery life, AA batteries
- up to 8 hours (2x AA provided)
- Battery life, Li-Ion pack
- up to 12 hours (sold separately)
Physical
- Dimensions
- 212 x 44 x 189 mm
- Weight
- approx. 1000 g (without antennas and power supply)
Environment
- Operating temperature
- -10 °C - +55 °C (14 °F - 131 °F)
- Operating relative humidity
- 5 - 95 % (non-condensing)
In the box
- Receiver
- EW-D EM rack receiver
- Transmitter
- EW-D SK bodypack transmitter
- Microphone
- ME 2 lavalier microphone (omni-directional)
- Antennas
- 2 rod antennas
- Power supply
- with country adapters
- Mounting
- rackmount set, 4 rubber feet
- Documentation
- quick guide, safety guide, manufacturer declaration sheet
