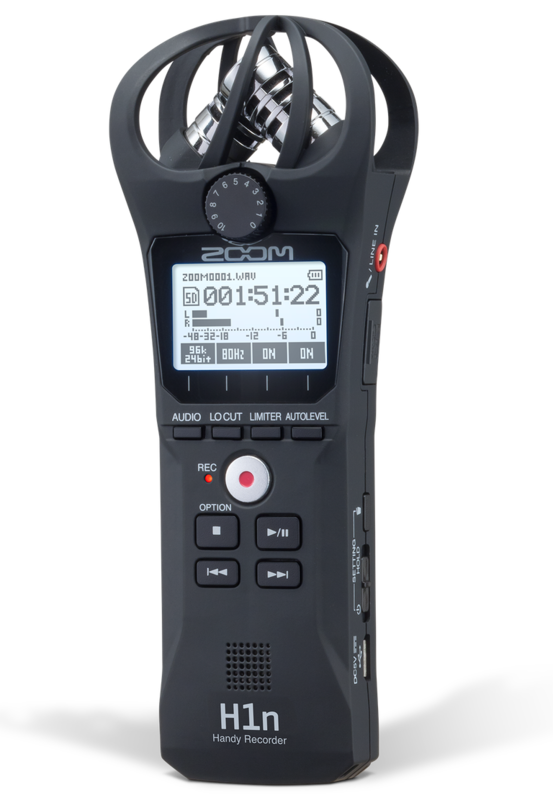

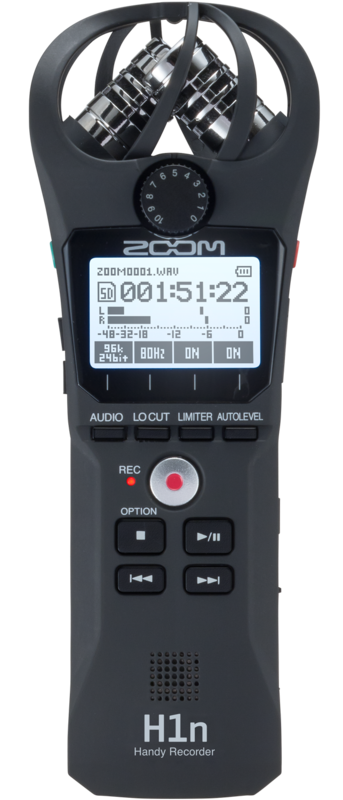

H1n
Compact battery-powered stereo handheld recorder with a built-in X/Y microphone pair and a 1/8" mic/line input. Aimed at musicians, podcasters, filmmakers and anyone needing a pocketable audio recorder.
- 90° X/Y stereo condenser mics, up to 120 dB SPL
- Records WAV up to 24-bit/96 kHz, plus MP3 formats
- Limiter, low-cut filter, pre-record and auto-record
- 1/8" mic/line input with 2.5 V plug-in power
- USB audio interface (44.1/48 kHz, 16-bit) and card reader
- About 10 hours on two AAA batteries; weighs 60 g
Fotografii
8Anunțuri
Încă nu sunt anunțuri pentru acest model
Când cineva vinde un H1n, anunțurile și istoricul vânzărilor vor apărea aici.
Vinde unul la felDescriere

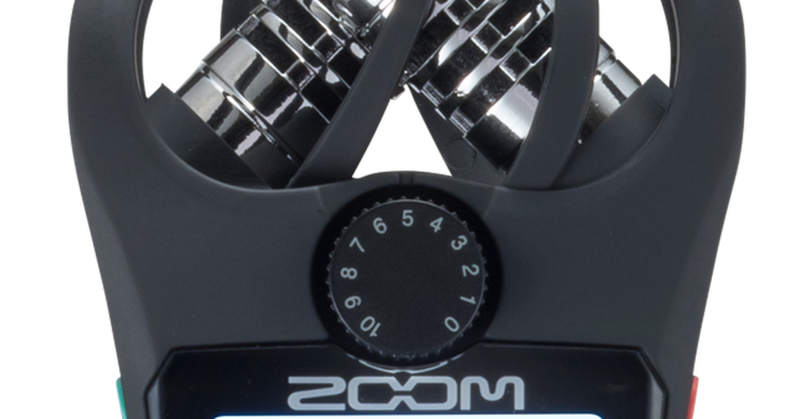

The H1n records stereo sound through a 90° X/Y unidirectional condenser microphone pair onto microSD or microSDHC cards. It captures WAV files up to 24-bit/96 kHz as well as several MP3 formats, and has a limiter that handles input up to 120 dB SPL plus a low-cut filter for reducing pops and rumble.

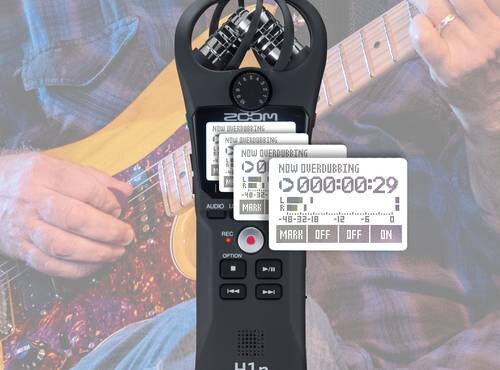

Controls are one-touch buttons with a 1.25" monochrome LCD. Recording aids include auto-record, pre-record, self-timer, auto record level, markers and overdubbing. For review and transcription there is playback speed control without pitch change, A-B repeat and a voice emphasize filter. A tone generator and slate tone help line up levels with a camera.
A 1/8" stereo mic/line input supplies 2.5 V plug-in power, and a 1/8" combined headphone/line output has its own volume control. A micro USB port works for file transfer, as a card reader or as a 2-in/2-out USB audio interface. Power comes from two AAA batteries, the optional AD-17 adapter or USB bus power.
Video
Specificații
- Marcă
- Zoom
- Model
- H1n
- Categorie
- Studio › Recordere
Recording
- Simultaneous recording tracks
- 2
- Simultaneous playback tracks
- 2
- Recording formats
- WAV: 44.1 kHz/16-bit, 48 kHz/16-bit, 48 kHz/24-bit, 96 kHz/24-bit; MP3
- A/D conversion
- 24-bit, 128x oversampling
- D/A conversion
- 24-bit, 128x oversampling
- Signal processing
- 32-bit
- Recording media

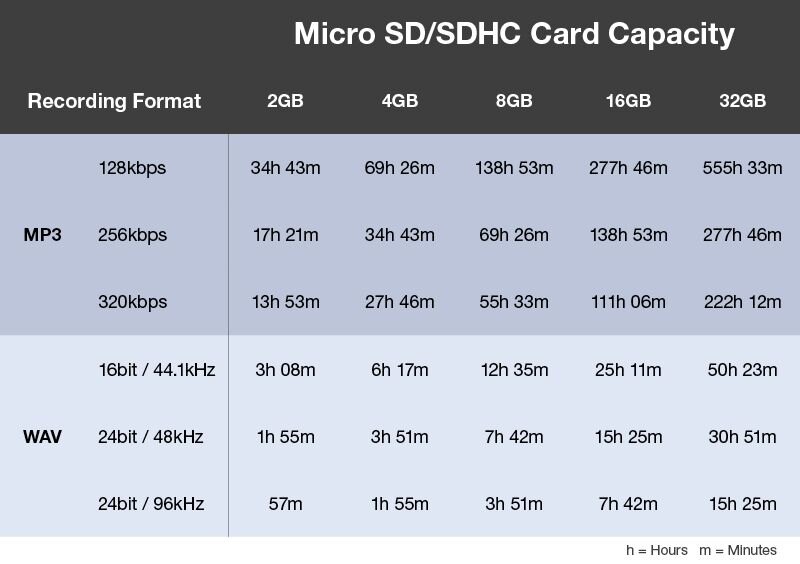

- microSD/microSDHC cards (Class 4 or higher, up to 32 GB)
Inputs
- Built-in stereo mic
- Unidirectional condenser, 90° XY stereo format
- Mic gain
- -∞ dB to +39 dB
- Maximum sound pressure level
- 120 dB SPL
- External input
- 1/8" stereo phone jack
- Rated input level
- -∞ dB to -39 dBm
- Input impedance
- 2 kΩ
- Plug-in power
- Supported (2.5 V)
Outputs
- Line/headphone output
- 1/8" stereo phone jack (combined line/headphones)
- Rated output level
- 20 mW + 20 mW into 32 Ω load
- Output impedance
- 10 kΩ or more
- Built-in speaker
- 500 mW mono, 8 Ω
Connectivity
- USB port
- Micro USB
- USB mass storage
- USB 2.0 high speed
- USB audio interface
- 44.1/48 kHz, 16-bit, 2-in/2-out, asynchronous
Functions
- Functions
- Lo-cut filter, limiter, test tone, slate tone, voice emphasize filter, playback position skipping, playback speed control, A-B repeat, auto REC level, marker, auto-record, pre-record, self-timer, overdubbing
Power
- Power
- 2 AAA batteries (alkaline, NiMH rechargeable or lithium); AD-17 AC adapter (DC 5V/1A); USB bus power
- Battery life
- Approximately 10 hours (alkaline, built-in mic, 44.1 kHz/16-bit)
Physical
- Display
- 1.25" monochrome LCD (96 × 64)
- Dimensions
- 50 mm (W) × 137.5 mm (D) × 32 mm (H) / 1.9 x 5.4 x 1.2 in
- Weight
- 60 g / 0.13 lbs (without batteries)
In the box
- Included
- Quick Start Guide
