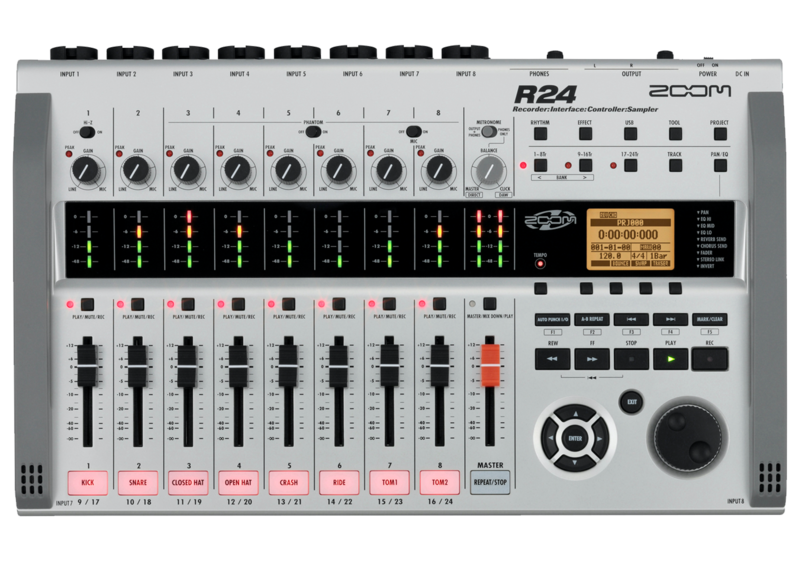

R24
Portable 24-track SD-card recorder with eight combo mic/line/instrument inputs, built-in stereo condenser mics, an 8-pad sampler and rhythm machine. It also works as an 8-in/2-out USB audio interface and a DAW control surface, for musicians recording away from a studio.
- 24-track playback, 8 tracks recorded simultaneously
- 8 XLR/TRS combo inputs; phantom power on 6 channels
- Built-in omnidirectional stereo condenser microphones
- 8 velocity-sensitive pads and 160 drum/percussion sounds
- USB 8-in/2-out interface and Mackie Control surface
- Runs on 6 AA batteries or AC adapter
Fotografii
8Anunțuri
Încă nu sunt anunțuri pentru acest model
Când cineva vinde un R24, anunțurile și istoricul vânzărilor vor apărea aici.
Vinde unul la felDescriere
The R24 records up to 8 tracks at once and plays back 24 tracks as WAV files (16 or 24-bit, 44.1 or 48 kHz) on SD or SDHC cards up to 32 GB. A built-in mixer provides faders, a 3-band EQ, pan and two effect sends per track, and it can bounce tracks or mix down to stereo. More than 100 DSP effects cover insert and send-return processing, amp and preamp models, and mastering algorithms, with 390 patch memories for storing settings.
Creative tools include eight velocity-sensitive pads (three banks, up to 24 samples), a rhythm machine with 160 drum and percussion sounds, and a loop-based audio sequencer that ties the recorder, rhythm machine and sampler together. Samples can be trimmed and time-stretched, and recorded audio can be turned into custom loops. A chromatic tuner and metronome are built in.

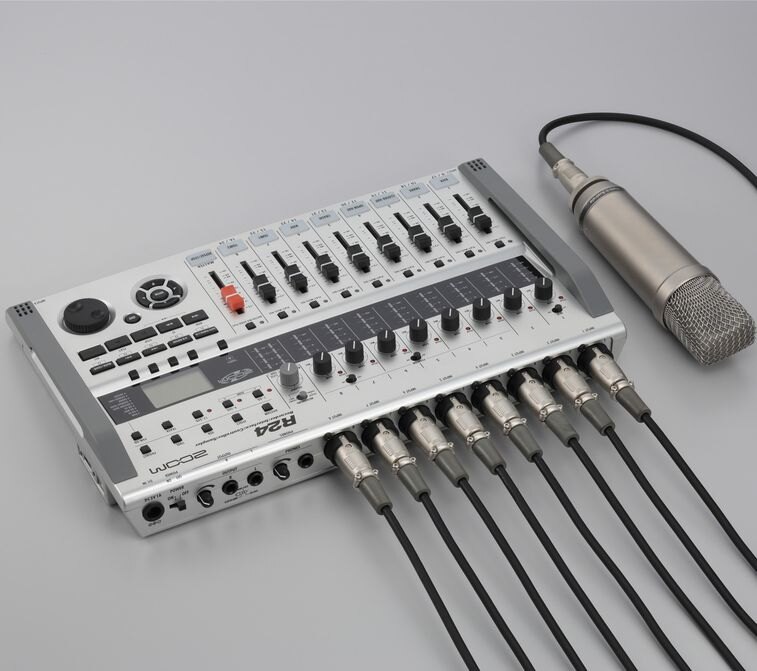

The eight XLR/TRS combo inputs take mic, line or instrument signals, with phantom power on six channels and a Hi-Z mode on input 1. Outputs are dual balanced TRS jacks and a headphone output. A USB 2.0 port provides 8-in/2-out audio interface operation, Mackie Control emulation for DAWs, and SD card reader mode. It runs from the supplied AC adapter or six AA batteries.
Specificații
- Marcă
- Zoom
- Model
- R24
- Categorie
- Studio › Recordere
Recorder
- Track count
- 24 (mono)
- Max simultaneous recording tracks
- 8
- Max simultaneous playback tracks
- 24 audio + metronome
- Recording data format
- 16 / 24-bit, 44.1 / 48 kHz WAV format
- Maximum recording time
- 200 minutes/1 GB (44.1 kHz 16-bit, mono tracks)
- Projects
- 1000
- Markers
- 100/project
- Recording media
- SD card (16MB - 2 GB), SDHC card (4 - 32 GB)
Inputs
- Inputs 1-8
- 8 XLR/TRS combo jacks
- Input level
- -50 dBm < continuous < +4 dBm
- Phantom power
- 48V, 24V (6 channels)
- Built-in microphones
- Omnidirectional condenser stereo pair
Outputs
- Main output
- TRS phone (balanced)
- Headphones
- Standard stereo phone jack 20 mW x 2 (32 Ω load)
Mixer and Effects
- Faders
- 9 (mono x 8, master x 1)
- Track parameters
- 3-band equalizer, pan (balance), effect send x 2, invert
- Effect patches
- 330 insert, 60 send-return
- Effect modules
- 7 insert, 2 send-return
Rhythm and Sampler
- Pads
- 8 (velocity-sensitive)
- Drum kits
- 10
- Rhythm patterns
- 511/project
- Tempo
- 40.0 - 250.0 BPM
Connectivity
- USB
- Mini-B type (USB 2.0 Hi-Speed)
- USB audio interface channels
- 8 recording / 2 playback, 24-bit
- Interface sampling frequency
- 44.1, 48, 88.2, 96 kHz
Power
- AC adapter
- DC 5V 1A (Zoom AD-14)
- Batteries
- 6 AA batteries (4.5-hour continuous operation time with backlight set to 15 seconds and phantom power off)
Physical
- Display

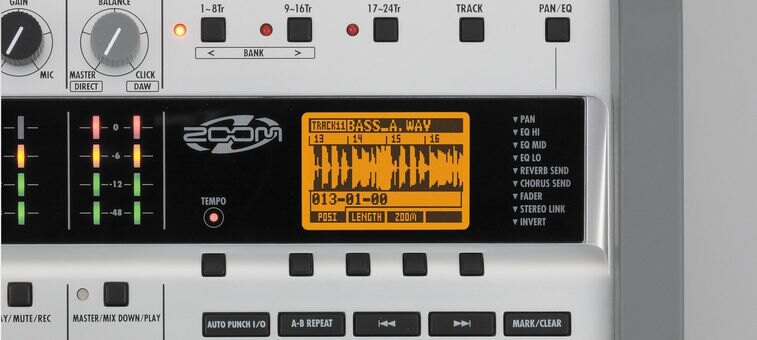

- 128 x 64 pixel LCD (with backlight)
- Dimensions
- 376 mm (W) x 237.1 mm (D) x 52.2 mm (H)
- Weight
- 1.3 kg
In the box
- Included
- Operation manual, AC adapter (Zoom AD-14), USB cable, Steinberg Cubase LE
