U-24
The U-24 is a compact, bus-powered USB audio interface with two combo inputs and four outputs, recording and playing back at up to 24-bit/96 kHz. It suits musicians, DJs and mobile recordists who need a portable interface for Mac, PC or iPhone/iPad.
- 2 in / 4 out USB audio interface, up to 24-bit/96 kHz
- Two XLR/TRS combo inputs with +48V phantom power
- Hi-Z support on input 1 for guitar and bass
- Zero-latency direct monitoring with cue/main balance
- MIDI in/out, TRS and RCA outputs, separate headphone out
- Runs on USB bus power or 2 AA batteries; 285 g
Fotografii
6Anunțuri
Încă nu sunt anunțuri pentru acest model
Când cineva vinde un U-24, anunțurile și istoricul vânzărilor vor apărea aici.
Vinde unul la felDescriere

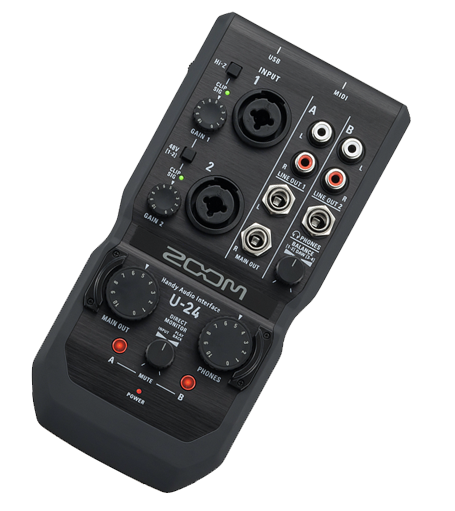

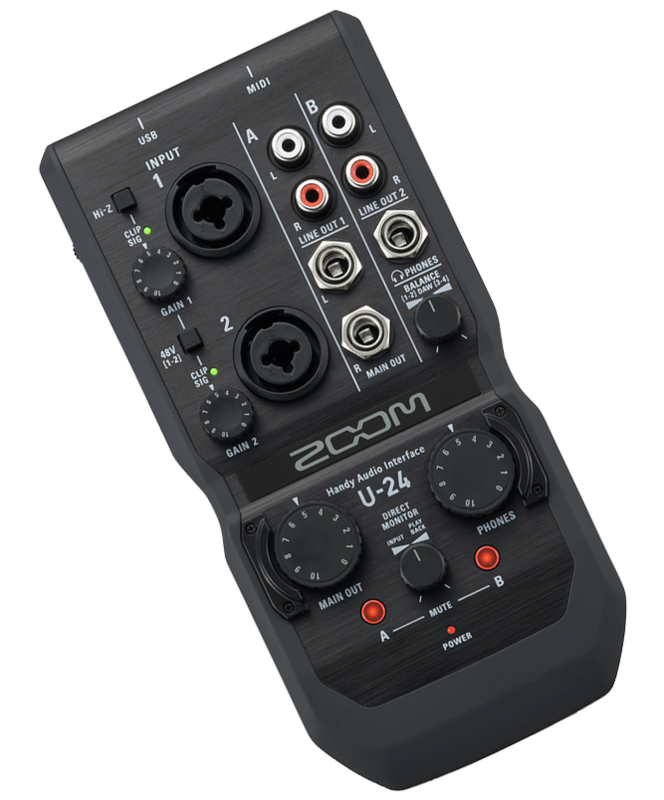

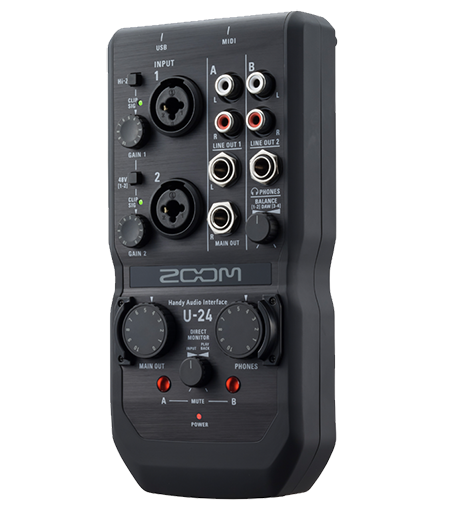

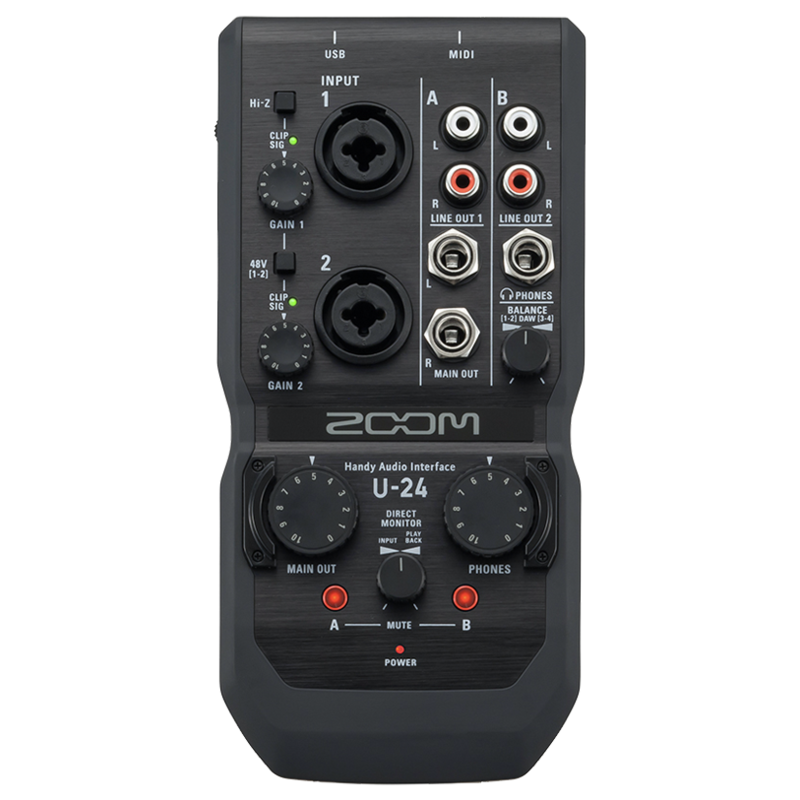

The U-24 is a small USB audio interface that records two channels and plays back four, at up to 24-bit/96 kHz. Its two combo XLR/TRS inputs each have a gain knob and a multi-colour level indicator. Both inputs can supply +48V phantom power, and input 1 has a Hi-Z mode for guitars, basses and other passive instruments. The preamps are the same low-noise type used in the maker's H5 and H6 recorders.
Outputs are a pair of TRS jacks, a pair of RCA jacks and a separate headphone output with its own volume control. This makes it possible to feed DJ mixers, monitors and headphones at once. Direct monitoring has no latency, and the cue and main signals can be balanced for DJ use, or a click track can be mixed with the main out for live playing. MIDI in and out on 5-pin DIN connectors are included.
The unit connects over USB 2.0 and runs from bus power, an optional AC adapter or two AA batteries, which give about 4 hours of use with phantom power off. It works with Windows, macOS and iPhone/iPad (with a camera connection adapter and external power). Ableton Live Lite is bundled, and Cubasis LE is available free for iPad.
Video
Specificații
- Marcă
- Zoom
- Model
- U-24
- Categorie
- Studio › Plăci de sunet
Inputs
- Input connectors
- TRS/XLR combo jacks (XLR: 2 hot, TRS: TIP hot)
- Input gain
- 0 – 43 dB
- Input impedance
- 2.6 kΩ (MIC IN), 1.1 MΩ (when Hi-Z ON)
- Maximum input level
- +2.7 dBu (MIC IN) / +20.7 dBu (TRS IN)
- Phantom power
- +48V
- Hi-Z
- Input 1
Outputs
- Main out L/R connector
- TRS phone jacks (unbalanced)
- Main out maximum level
- +10 dBu (at 0 dBFS)
- Main out impedance
- 330 Ω
- Line out 1/2 connector
- RCA (coaxial)
- Line out maximum level
- +8 dBu (at 0 dBFS)
- Line out impedance
- 1 kΩ
- Headphone output
- Standard stereo phone jack, 30 mW x 2 (into 32 Ω load)
- Headphone maximum level
- +10 dBu (at 0 dBFS)
- Headphone output impedance
- 33 Ω
Audio
- Recording / playback channels
- Recording: 2 channels, Playback: 4 channels
- Sampling frequencies
- 96 kHz, 88.2 kHz, 48 kHz, 44.1 kHz
- Bit depth
- 24-bit
- Frequency response
- At 44.1 kHz: -1.0 dB: 20 Hz - 20 kHz; At 96 kHz: -3.5 dB: 20 Hz - 40 kHz
- Equivalent input noise
- -119.5 dB EIN (IHF-A) at 43 dB, 150 Ω input
Connectivity
- Interface
- USB 2.0

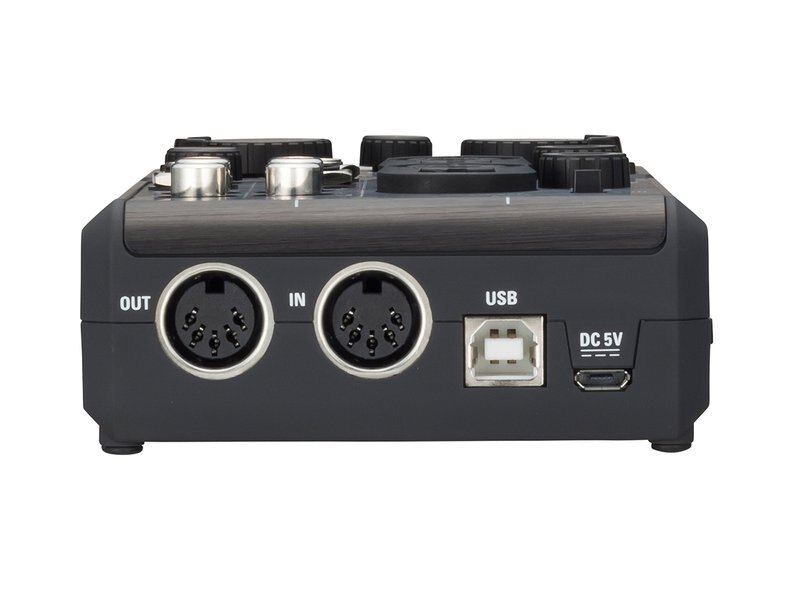

- MIDI I/O
- 5-pin DIN jack
Power
- Power source
- USB bus power (Type B), Zoom AD-17 (Micro-B), DC 5V power supply (Micro-B), 2 AA batteries
- Battery life
- 4 hours continuous operation with phantom power off
- Power consumption
- 5W maximum
Physical
- Dimensions
- 191.8 mm (D) x 92.3 mm (W) x 42.7 mm (H)
- Weight (main unit only)
- 285 g
Software
- Windows
- Windows 10/11 (64-bit), Intel Core i3 or faster, USB 3.0/USB 2.0
- Mac
- Mac OS X 10.9.5 ~ macOS 26, Intel Core i3 or faster, USB 3.0/USB 2.0
- iPhone/iPad
- iOS 7.1 ~ 26, iPadOS 15 ~ 26
- Bundled software
- Ableton Live Lite; Cubasis LE for iPad (free download)
In the box
- Included
- Operation manual, USB cable, Ableton Live Lite download code
- Optional accessories
- Zoom AD-17 power supply, Zoom AIH-1 Audio Interface Holder
