Classic Compact MK3
Compact two-way floorstanding-style hi-fi loudspeaker from the Classic MK3 series, with a 7.5-inch HexaCone woofer and an X-ART tweeter. Offered as an active version with built-in amplifiers or a passive version, for stereo and multichannel home listening.
- Active and passive versions available
- 7.5" HexaCone woofer with X-ART tweeter
- Active: 200 W PWM woofer amp, 50 W class A/B tweeter amp
- Active response 35 Hz - 50 kHz; passive 38 Hz - 50 kHz
- Finishes: black glossy, cherry, walnut
- Warranty 5 years active, 10 years passive
Fotografii
8Anunțuri
Încă nu sunt anunțuri pentru acest model
Când cineva vinde un Classic Compact MK3, anunțurile și istoricul vânzărilor vor apărea aici.
Vinde unul la felDescriere
The Classic Compact MK3 is the smallest model in the ADAM Audio Classic family and uses the same drivers and materials as the larger models. It combines one X-ART tweeter with a 7.5-inch HexaCone woofer, and suits stereo as well as multichannel setups.
In the active version the tweeter is driven by a 50 W RMS class A/B amplifier and the woofer by a 200 W RMS PWM amplifier. Frequency response is stated as 35 Hz to 50 kHz, with a crossover at 2400 Hz and an input impedance of 10 kOhm. The X-ART tweeter has a 4:1 velocity transform ratio and a 0.17 g diaphragm.

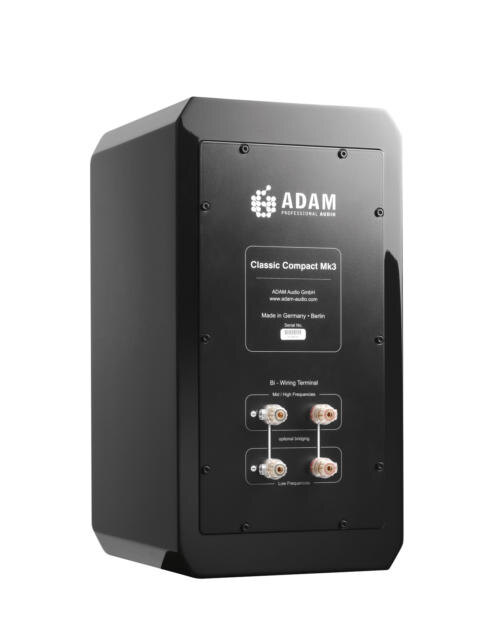

The passive version has the same drivers and cabinet but no built-in amplification. It is a 4 Ohm design with a stated efficiency of at least 87 dB/W/m, a frequency response of 38 Hz to 50 kHz and a bi-wiring terminal. Both versions come in black glossy, cherry or walnut finishes and include a front cover and manual.
Specificații
- Marcă
- ADAM Audio
- Model
- Classic Compact MK3
- Categorie
- Hi-Fi și audio pentru casă › Boxe
Drivers
- Woofer count
- 1
- Woofer basket diameter
- 7.5" (186 mm)
- Woofer cone material
- HexaCone
- Tweeter count
- 1
- Tweeter type
- X-ART
- Tweeter velocity transform ratio
- 4:1
- Tweeter diaphragm weight
- 0.17 g
Amplification (active version)
- Woofer amplifier type
- PWM
- Woofer amplifier power RMS / music
- 200 W / 300 W
- Tweeter amplifier type
- A/B
- Tweeter amplifier power RMS / music
- 50 W / 100 W
Audio (active version)
- Frequency response
- 35 Hz - 50 kHz
- Crossover frequency
- 2400 Hz
- Input impedance
- 10 kOhm
Audio (passive version)
- Frequency response
- 38 Hz - 50 kHz
- Crossover frequency
- 2400 Hz
- Power handling
- 200 W / 300 W
- Efficiency
- ≥87 dB / W / m
- Impedance
- 4 Ohm
Physical
- Weight
- 24.3 lb (11 kg)
- Height x Width x Depth
- 17.5" (440 mm) x 9" (230 mm) x 11.5" (290 mm)
- Finish
- Black glossy, Cherry, Walnut
- Warranty (active)
- 5 years
- Warranty (passive)
- 10 years
In the box
- Active version
- Front cover, manual, power cord
- Passive version
- Front cover, manual, bi-wiring terminal
